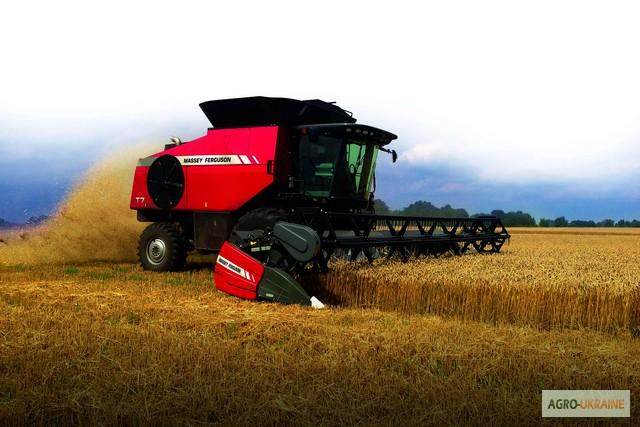

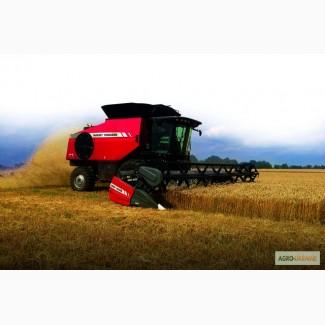

Massey Ferguson T7 combine harvester, Volyn region.

Massey Ferguson T7 combine harvester is a professional machine designed for efficient harvesting of various crops, such as: wheat, corn, soy and other crops. The MF combine is equipped with a powerful 7-cylinder AGCO POWER engine with a volume of 9.8 liters. A simple ergonomic design, high productivity and a large hopper allow you to quickly and professionally collect a high-quality crop. The unloading system can reach a speed of up to 141 l / s. Combine T7 shows high productivity and reliability in field work.

The Massey Ferguson T7 combine is equipped with an AGCO POWER engine with a nominal power of 375 hp. Thanks to the unique Natural FlowTM feeding and threshing system, a capacious grain hopper and a powerful unloading system, this model provides excellent productivity and the ability to efficiently harvest various crops: wheat, corn, soybeans and other crops.

Delivery system. One of the main features of the Massey Ferguson T7 combine is the Natural FlowTM feeding and threshing system. The simple and unique design ensures efficient harvesting of agricultural crops, ease of maintenance and fuel economy. Thanks to the transversely placed rotor, the weight that enters the threshing floor, and is not compacted, does not change the direction of movement when moving from the inclined chamber to the rotor. Thus, the material is fed directly from theharvester to the rotor with minimal damage and power consumption, which, in turn, contributes to lower fuel consumption.

Threshing and separation. After being fed into the rotor, the grain is threshed and separated through a drum with a 360° gripping angle, increasing productivity and reducing grain damage. The transverse rotor with a diameter of 762 mm has six rows of shiny bulls with a height of 18 mm and a drum, which is equipped with 17 transverse bars, which together provide soft threshing with minimal power consumption.

Cleaning system. The design of the accelerator rollers consists of two shafts, each of which has five pairs of polyurethane ribs. The rollers accelerate the movement of the mass by 4 times and direct it through a uniform flow of air from a cleaning fan with a diameter of 330 mm, with the help of which a significant part of the impurities is removed from the grain even before it hits the grate. This two-stage cleaning ensures high quality grain with minimal impurities. Since the cleaning of the MF T7 combine does not depend on gravity when moving the grain, the direction of movement of the grain mass during cleaning remains unchanged on slopes with an angle of up to 23%.

Grain bunker and unloading. Two additional unique features of the MF T7 combine are one of the largest grain hoppers in its class with a volume of 13,743 l and a transport height of 3.58 m. The MF T7 also has an incredibly high unloading speed, thanks to the unique DirectFlowTM unloading auger, which allows you to reach a speed of 141 l / s during the entire unloading process and empty the hopper in just 98 s, thus, a significant saving of time and means.

Harvesting. The rotor on the MF T7 is located in the center of the machine, which allows you to place the grain hopper below and above the threshing system. Thanks to this, a low center of gravity and the total height of the unit are provided at the same time with a larger capacity of the grain hopper. Thanks to the unique design, the MF T7 harvester has up to 3t. lower weight, compared to other combines of the same class, without compromising productivity or durability, allows to increase harvesting efficiency, reduce fuel consumption and soil compaction.

Features:

Technical characteristics

Characteristics of the MF T7
Engine
Engine type AGCO POWER 98AWF
Engine volume (l) 9.8
Number of cylinders (pcs) 7
Power at 2100 rpm SAE (kW/hp) 280/375
Power at Maximum Boost (kW/hp) 336/451
Fuel tank volume (l) 870
Transmission
Transmission type hydrostatic
4-speed gearbox
Maximum speed (km/h) 34(//tractor-service.com)
Threshing and separation system
Type transverse rotor
Diameter (mm) 762
Length (mm) 2235
Separation angle (°) 360
The area of the drum (m2) 0.61
Threshing and separation area (m2) 3.89
Speed in the low range (rpm) 180-480
Speed in the high range (rpm) 336-900
Cleaning system
Levels of purification 2
Total grid area (m2) 4.99
The type of cleaning fan is a turbine fan
Diameter (mm) 330
Additional threshing on the rotor standard
Chopper straw 2 speeds
Grain bunker/ razgruzka
Grain hopper volume (l) 13,743
Discharge speed (l/s) 141
Diameter of unloading auger (mm) 356
Length from the center (m) 7.56
Unloading height (m) 4.70
General sizes
Mass (kg) 14.625
Transport height (m) 3.58
Wheelbase (m) 3.40
Length without header (m) 8.61
Ground clearance (mm) 595
