Milking machine Burenka 1 maxi with electric protection 3000 rpm, Poltava region.

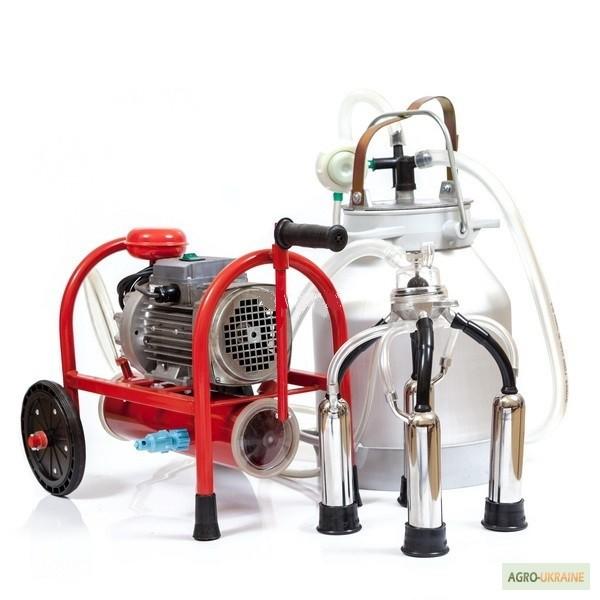

Burenka milking machine 1 maxi

with electronic protection of the vacuumpump against the ingress of milk and water.

intended for use at home and designed for servicing from 1 to 8 cows at a time, equipped with all possible options of the Maiga milking system.

It includes one-piece stainless glasses and an aluminum lid on the milk can, an enlarged collector of 240 cm3, which makes milking softer due to the free flow of milk into the can, and apump protection unit (BZN) against water and milk ingress, which will automatically turn off thepump in an emergency situation.

The vacuum unit is equipped with an electric motor at 3,000 revolutions per minute, which makes it possible to use it both for milking one cow and for simultaneous milking of 2 cows in the presence of a second additional milking bucket, which can be purchased separately. The milking machine is already equipped with electronic protection of the vacuum pump against the ingress of milk and water.
General information:

- Device type: stationary;
-Maximum productivity of 8 cows per time;
-One-time milking of 1 cow;
-Material of the milk tank: aluminum;
-The capacity of the milk tank is 20 l.;
-Type of nipple cups: stainless steel;
-Milk tank cover: aluminum;
-Chassis design: wheeled cart;

Technical characteristics:

-Vacuum pump of dry plate-rotor type;
-Electric power 0.75 kW;
- Power supply: single-phase network 220V;(//tractor-service.com)
-Maximum vacuum pressure 0.06 mPa (60 kPa);
-Volume of pumped air at idle speed 220 l/min (7m3/hour);
- Shaft rotation speed 3000 rpm;

Габаритные размеры

- 72 cm long;
-Width 39 cm;
-Height 57 cm;
-Weight 29 kg.

Delivery set:
Vacuum pump, milking system with bucket, passport (instructions).

Warranty obligations.

When buying a milking machine from us, the vacuum pump and electric motor are covered by a one-hour warranty.

The Burenka milking machine is distinguished by its simplicity and at the same time reliability. The minimal price, the availability of spare parts make it the undisputed leader among other milking machines, it has no competition for the price. The main difference from other milking machines is the placement of the milking bucket separately from the vacuum pump, which allows you to take it even to another room.
The milking equipment is equipped with a reliable and simple two-stroke system, which works in compression and decompression mode. At a working vacuum metric pressure of 47 kPa, which is regulated by a vacuum regulator, the number of pulsations in the pulsator should be 60 ± 5 per minute.

In order to avoid repair of the pump, an electronic system of protection against ingress of milk and water (BZN) has already been installed.

After milking each cow, it is necessary to drain the milk from the milking pail to avoid filling the bottle and getting milk into the vacuum system and the pump. At the end of milking, the milking equipment should be washed with a solution of detergent and rinsed with warm water; for this, three brushes for washing, two short and one long, are supplied in the kit.
Special detergent can be bought additionally.
