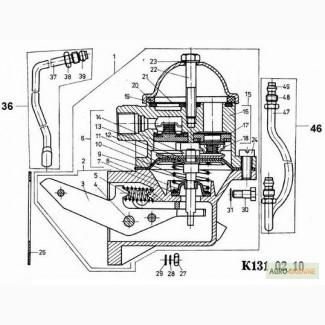

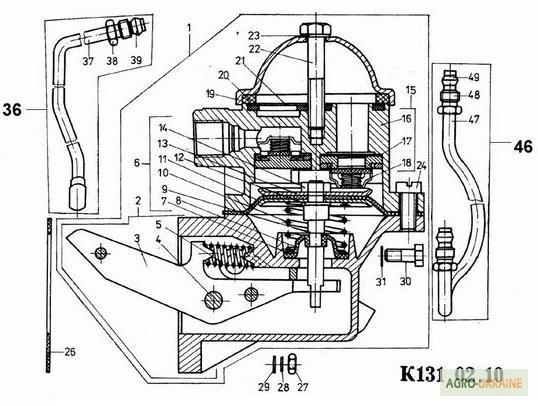

Fuel pump for D2500k engine on Balkankar loader, Kharkiv region.

Position No.
Catalog No.
positional number
Name
1
6 478830
В2642953
Pump fuel pumping 2500
2

2500 02.00.00
Case (assembled)
3

2500 02.01.00
Seesaw
4
3900 02.00.03
3900 02.00.03
Here is the rocker
5

3900 02.00.02
Spring
6

3900 02.02.00
Membrane (assembled)
7

3900 02.02.05
Washer
8

3900 02.02.06
Sealing
9

3900 02.02.03
Traction
10

3900 02.02.04
Spring
11

3900 02.02.02
Membrane disk
12

Ring I A 5x9 Al 99.5 BDS 3609-73
13

3900 02.02.01
Washer
14

Nut M5-04 BDS 1251-83/Zn
15

3900 01.00.00
Head (assembled)
16

390
Head
17

3900
Sealing
18

3900 01.01.00
Valve
19

3900
Cover
20

3900 00.00.01
Sealing
21

3900 00.01.01
Filter
22
6 224540

Bolt A1 M5x30-8.8 BDS 1230-86/Zn(//tractor-service.com)
23

Ring I A5x9 Al 99.5 BDS 3609-73
24

Screw 1 A M5x12/12-8.8 BDS 832-83/Zn
26
6 467884
368 51113
Sealing
27
6 235781

Nut M8-8 BDS 744-83/Zn
28
6 205035

Washer 2-8L BDS 833-82/Zn
29
6 204978

Washer AM 8 BDS 206-78/Zn
30
6 239765

Screw M8x25-8.8 BDS 2171-83/Zn
31
6 240403

Ring I A 8x12 Al 99.5 BDS 3609-73
36
8 478183
В35317174
Pipe - fuel pump - fuel filter
36
8 473048 4566693943
В35353386
Pipe - fuel pump - fuel filter
37
7 478198
В35317146
Fuel pipe
37
7 473054 45666933210
В35353383
Fuel pipe
38
6 420343 4566692220
В33532130
Stop nut
39
6 471421 4566694041
В33171153
Conical seal
40
6 431985
В36565874
Bracket
46
8 478227
В35511158
Pipeline - filter sump - fuel pump
46
8 472717 4566693643
В35714445
Pipeline - filter sump - fuel pump
46
8 481158
В35353491
Pipeline - filter sump - fuel pump
47
6 478135
В34232181
Trumpet
47
6 481143
В34231091
Trumpet
47
7 448414
В35714444
Fuel pipe
48
6 420343
В33532130
Support nut
49
6 471421 4566694041
В33171153
Уплотнение коническое
