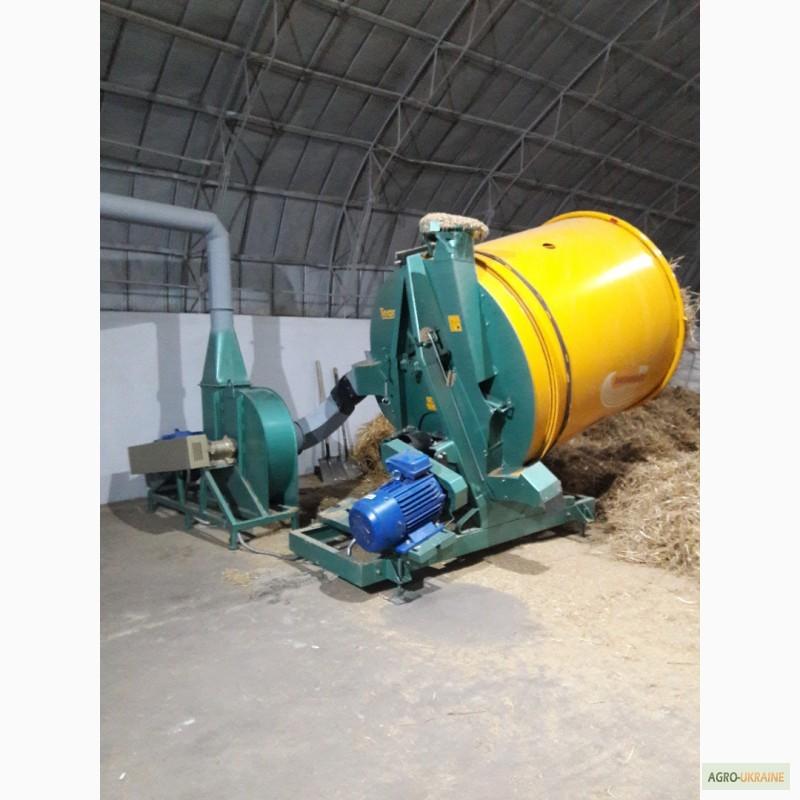

Stationary shredder "Tomahawk 505M" is intended for crushing straw, hay, both compressed in bales, of any size, and in bulk.
Features:
The capacity of the straw cutter is 2500 kg. time.
The size of the output fraction is regulated by the size of the sieve cell.
It can work with high humidity of the product up to 35%.
The stationary straw chopper is equipped with a control panel with maximum protection of the electrical system.
This shredder can work 24 hours a day, 365 days a year.
The maximum degree of protection is set in the control panel.
High-quality German electric motors with a 3-year warranty are installed.
It is additionally equipped with: Automatic straw bale feeding conveyor. With a hammer
shredder straw for obtaining a fine fraction up to 1 mm.
Over many years of operation, the Tomahawk 505M has established itself as the most reproducible and high-quality straw chopper on the market of Ukraine and Europe.
Index/Models Tomahawk 505M:
(//tractor-service.com)
Material: grass biomass,
straw, hay, reeds
Humidity: Up to 35%
Material form:
round bales 1.20 - 1.50 m
cubes 2.00 x 1.30 x 1.20 m
Cube *** 2.50 x 1.30 x 1.20 m
Productivity * from loading table: Up to 2,500 kg / h
Download:
Installed power: mechanical
37 kW and 45 kW
Energy consumption in time: It depends on productivity.
Power supply: 3 x 400 V, 50 Hz
Dimensions L x W x H: 3.80 x 2.00 x 2.70 m
Weight: 1360 kg
Operating conditions: Open space, ventilated.
Operating temperature: From +5 to +30 ° С
Operator: 1 person
