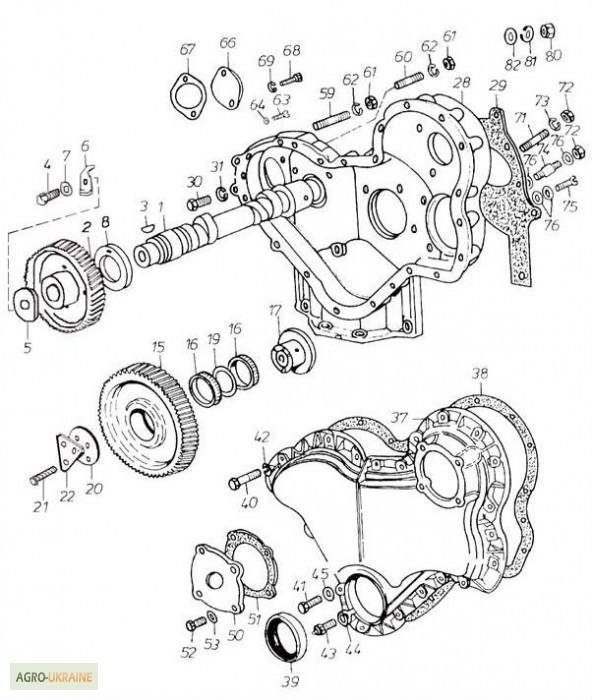

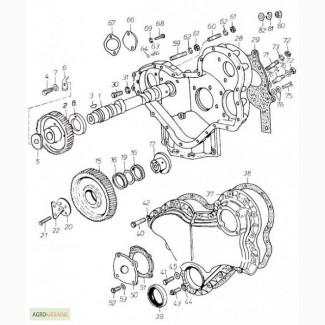

Distribution transmission for Engine D 3900k, Kharkiv region.

Position No.
Catalog No.
positional number
Name
1
В31416211
6 504 547
Distribution shaft
2
В31171931
6 421 785
Gear
3
C32417613
6 433 338
The key is segmented.
4
В32142221
6 462 550
Bolt
5
33153128
6 433 344
Special washer
6
31733121
6 431 753
Safety plate
7
В33115408
6 447 837
Pad washer
8
33153121
6 404 798
Support washer
15
В31171951
6 421 342
Intermediate gear
16

6 230 105
Needle bearing K58x63x17 TGL 11553
17
В32718523
6 443 657
Here is the intermediate gear
19
В33125132
6 430 368
Spacer sleeve
20
В32413416
6 433 365
Special washer
21

6 235 403
Bolt A1 M10x65-8.8 BDS 1232-86/fos.
22
31734125
6 431 768
The counter plate.
28
В37161662
6 472 097
Crankcase of distribution gear
28
В37161661
6 472 082
Crankcase of distribution gear
29
36814123
6 432 263
Sealing
29
36814126
6 518 701
Sealing
30

6 230 961
Bolt A1 M8x20-8.8 BDS 1232-86/fos.
31

6 237 654
Washer 2-8L BDS 833-82/Zn(//tractor-service.com)
37
В37161201
6 402 336
Distribution gear cover
38
В36813301
6 432 648
Sealing
38
В36813302
6 518 693
Sealing
39
В2415381
6 488 166
Edge sealing
40

6 237 324
Bolt A1 M8x65-8.8 BDS 1232-86/Zn
41

6 237 598
Bolt A1 M8x20-8.8 BDS 1232-86/Zn
42

6 205 035
Washer 2-8L BDS 833-82/Zn
43
В32186127
6 430 115
Special bolt
44

6 240 395
Ring I A6x10 AI 99.5 BDS 3609-73
45

6 240 403
Ring I A8x12 AI 99.5 BDS 3609-73
50
37556117
6 431 091
Control cover
51
C36825107
6 477 558
Sealing
52

6 237 598
Bolt A1 M8x20-8.8 BDS 1232-86/Zn
53

6 240 418
Ring I A8x14 AI 99.5 BDS 3609-73
59

6 238 344
Pin M6x30-8.8 BDS 1238-75/Zn
60

6 238 338
Pin M6x50-8.8 BDS 1238-75/Zn
61

6 223 660
Nut M6-6 BDS 744-83/fos.
62

6 239 316
Washer 2-6L BDS 833-82/Zn
68

6 238 478
Pin M8-6gx55 BDS 1238-75/Zn
69

6 224 106
Nut M8-8 BDS 744-83/fos.
70

6 205 035
Washer 2-8L BDS 833-82/Zn
71

6 238 371
Screw M8x25-8.8 BDS 2171-83/fos.
