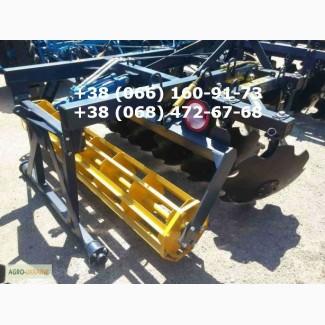

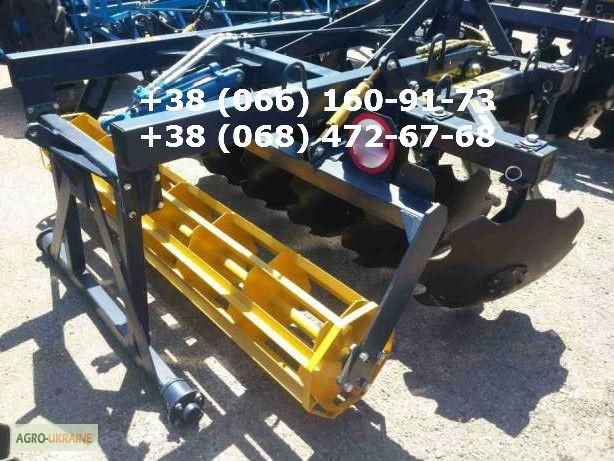

Disk plow AGD 2, 5 AGD (trailer/hinged), Dnepropetrovsk region.

Agroremmash AGD 2.5 AGDDisk plow (disc plow) AGD - 2.5 trailed The unit is intended AGD 2.5 AGD for cultivation of soils of different mechanical composition with grinding and embedding plant residues in the soil under the following conditions: AGD 2.5 AGD борона (дископлуг) АГД - 2.5 прицепная Агрегат предназначен АГД 2,5 АГД для возделывания почв разного механического состава с измельчением и заделкой растительных остатков в почву при условиях: АГД 2,5 АГД
- soil hardness is no more than 3.5 MPa,
- soil moisture is not more than 27%,
- height of harvest and plant residues up to 30 cm.
The unit is designed for work with tractors of the 14 kN class (1.4 ts)
The unit can be operated in all soil and climatic zones.

Trailer type
Construction width, m 2.5 minus 0.1
Productivity ha / time, 1.8...2.2
Depthtillage of soil, cm 8...18
Operating speed, km/h 8.0...12.0
Transport speed, km/h 20(//tractor-service.com)
Weight of the product (without accessories), kg 1160 minus 50 Dimensions, mm, no more
length 4800 minus 150
width 2800 minus 150
height 1000 minus 150
Ground clearance, mm, not less than 300
Service personnel, people (tractor driver) 1
Guaranteed resource, 1240 hectares.
Transfer to transport and working position hydraulic.
Options for using AGD-2, 5H:
- as a trailing unit, it is attached to the tractor with the help of a trailing device;
- as an intermediate option, half-mounted;
- as a mounted tool, the towing device will be moved to a vertical position,
will disconnect the wheel drive, hang the unit on a three-point systemtractor
