Podyemnoe device for H=2500mm lifting cylinder for a Balkancar EV 687 loader, Kharkiv region.

Position No.
Catalog No.
Name
Pieces

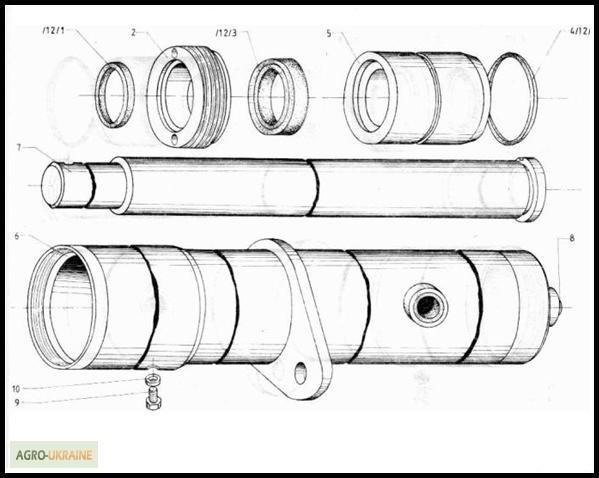

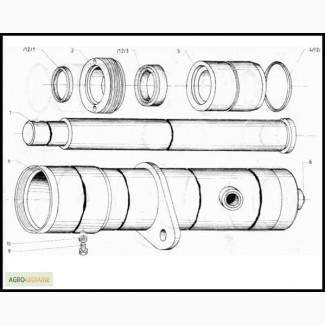

LIFTING DEVICE AT H=2500

_1
327869/327870/ 2915.1 00.00-04
Plunger cylinder special TPS5 (50х1260)
1

338123/338124/ 2915.1 00.00-04SY
Plunger cylinder special TPS5 (50х1260)
1
1
284518/284518/ ON-04 58952-82
Oil drain E50
1
2
251965 2505 00.03
Nut
1
3 1
158507 2865 01.00
Cuff M2B 50x58x12
1
3 2
158607 2865 01.00
Cuff M2V 50x58x12
2
4
217646 BDS 7947-83(//tractor-service.com)
"o" ring 50x3-1-1-70
1
5 1
358115 2505.1 00.08
Special bushing
1
6
338125/338126/ 2915.1 00.00-04
Cylinder (general view)
1
7
338133/338134/ 2910 02.00M-08
Plunger (general view)
1
8
173615 ON-04 64821-76
Traffic jam 7
1
9
219429/217274/ BDS 1230-72/6.6
Bolt I M8x6-6g
1
10
208785 BDS 3609-73/M1
Ring I A8x12
1
11 2
338127 2505.1 00.16
Special bushing
1
12
326765/326766/ 2915.1 00.00
Fast-wearing spare parts for TPS5 (50х1260)
