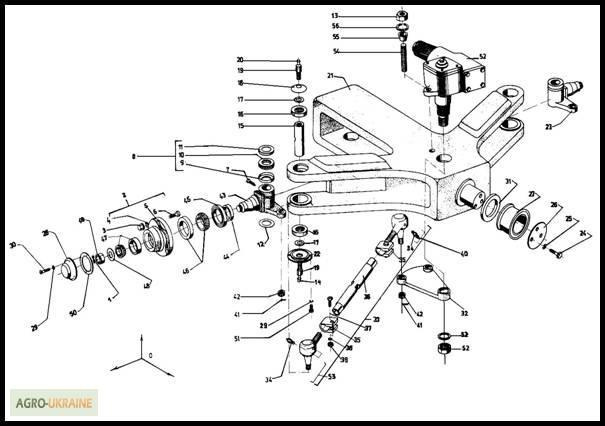

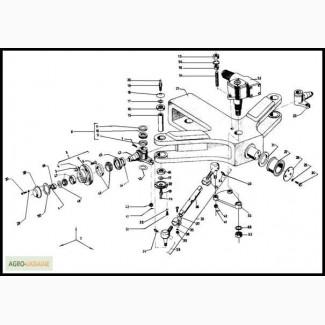

Controlled bridge for loader EV 687, Kharkiv region.

Position No.
Catalog No.
Name
Pieces

CONTROLLED BRIDGE

121005 4900 00.00.00
Controlled bridge option 02

1
223522/222523 BDS 55-64
Cotter pin 5x36

2
121022/121023/ 4900 02.00.00
Hub (assembled)
2
3
123178/123/179/ 4901 02.00.02
Nut
10
4
205673/109288/ DIN 74361
Spherical spring washer C14.5
10
5
120007/120008/ 4900 02.00.01
Hub
2
6
118162/118163/ 7015 00.00.33
Wheel bolt M14x1.5
10
7
222600/222601 BDS 1368-73/8.8
Screw I M12x35-6g
2
8
119550/119551/ 4901 03.00.00
Thrust bearing (assembled)
2
9
118174/118175/ 4901 03.00.02
Cover
2
10
206439 GOST 6874-54
Bearing 8205
2
11
118171/118172/ 491 03.0.01
Cover
1
12
118221/118221 6187 06.00.01
Adjusting washer
4
13
216098/216099 BDS 744-72/8
Nut M14-6H
3
14
207152 BDS 1640-81
Press-oil press 2.1.45
4
15
331733 4901 00.00.16
Rotary knuckle bolt
2
16
219492 GOST 4060-60
Bearing 942/25
4
17
310423/310423 4901 00.00.15
Sealing cover
2
18
210852/270853 4925.1 00.00.03
Cover
2
19
179664/179664 4901 00.00.14
Washer
2
20
215556/215557 BDS 1230-72/5,6
Bolt I M6x16-6g
6
21
286287/286288 4900 05.00.00
Beam (in sboe)
1
22
179663/179664 4901 00.00.13
Cover
2
23
118197/118198/ 4901 00.00.03
Twisted fist, right(//tractor-service.com)
1
24
215774/215775 BDS 1232-72/5,6
Bolt I M12x25-6g
3
25
208086/29867 BDS 833-82
Washer 2-12H
3
26
118213/118214/ 4901 00.00.09
Washer
1
27
119552/11953/ 4901. 04.00.00
The sleeve is elastic
2
28
118201/11822 4901 0.00.05
Cover
2
29
208120/218981 BDS 833-82
Washer 2-6H
20
30
215863/215864/ BDS 832-75/5,6
Screw I M6x12-6g
8
31
118210/118211/ 4901 00.0.08
Washer
2
32
118191/118192/ 4901 00.00.01
A lever with a slotted hole.
1
33
121024/121025/ 4900 03.00.00
Rod (assembled)
2
34
207860/207860/ BDS 1640-73
Oil press 1-B-1
4
35
108393/108394/ 4909 00.04.02
Bracket
4
36
120010/120011/ 4900 03.00.01
Rod
2
37
222592/222593 BDS 1232-86/5,6
Bolt I M10x40-6g
4
38
103161/103162 BDS 833-82
Washer 2-10H
4
39
222850/210252 BDS 1259-83/5
Nut 1 M10
4
40
403033/119556 8056 00.00
Ball connection 22
2
41
222525/222524 BDS 55-77
Cotter pin 3.2x28
4
42
215697/29829 BDS 1254-73/5
Nut I M12x1.5-6g
4
43
118194/118195/ 4901 00.00.02
Twisted fist, left
1
44
118225 5024 00.00.09
Bushing
2
45
216100 BDS 9954-78
Sealing B 55x75x10-1
2
46
206282 GOST 333-79
Bearing 7207
2
47
206306 GOST 333-79
Bearing 7306
2
48
118206 4901 00.00.07
Washer
2
