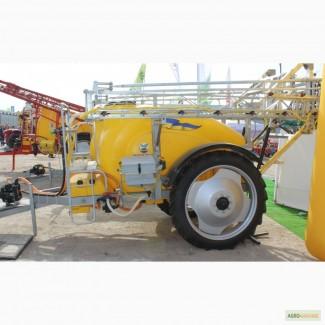

Trailed sprayer Splash 2000, Dnepropetrovsk region.

Delivery across Ukraine for free!

Trailed sprayers from 2000 l to 3000 l. Completing to order. Polish and Italian equipment. Additional GPS. Video link: https://youtu.be/Rv3B287j9P4

Manufacturer: Ukrainian production
Features:
The bars are galvanized, the frame is made using special metal treatment followed by powder painting to increase reliability and protect the surface of the equipment from corrosion.
1. Aggregation with tractors traction class: 1.4
2. Productivity ha/h: 10.8-21.6
3. Width of capture, m: 18
4. Tank capacity, l (Poland): 2000
5. Working speed when spraying km/h: 6 -12
6. Consumption of working fluid l/ha: 50-500
7. Rate of drug consumption l/ha: 0.1-7.5
8. Working pressure in injection communication MPa: 0.2-0.5
9. Track width, mm: 1500-2000
10. Ground clearance mm: 500
11. The height of the location of the sprinklers above the ground, mm: 540-2050
12. Maximum transport speed km/h: 20
13. Overall dimensions, mm in working position(//tractor-service.com)
-length: 4 350
- width: 17960
- height: 2200
14. Overall dimensions, mm in transport position
- length: 4850
- width: 2980
- height: 2200
15. Mass, kg: 1320
16.Pump of working liquid Comet BP (Italy), l/min: 150
17. PTO shaft rotation frequency rpm: 540
18. Number of mixers in a barrel, pcs.: 2
19.Tires 9.5R422
20. Capacity for flushing the system (Poland): 200 l
21. Equipment for washing canisters with a mixer with a capacity of 20 l
22. Tank for washing hands: 15 l.
23. Manual disassembly of the sprayer rod
24. Hydraulic shock absorber (Poland)
25. System of hydraulic stabilization of the sprayer boom (Poland)
26. System of hydraulic lifting of sprayer rods, lifting height 1.5 m. (Poland)
27. Cardan shaft (Germany)
28. 3-position nozzle with a sprayer for applying fertilizers KAS (Teetjet/ Lehler Germany)
