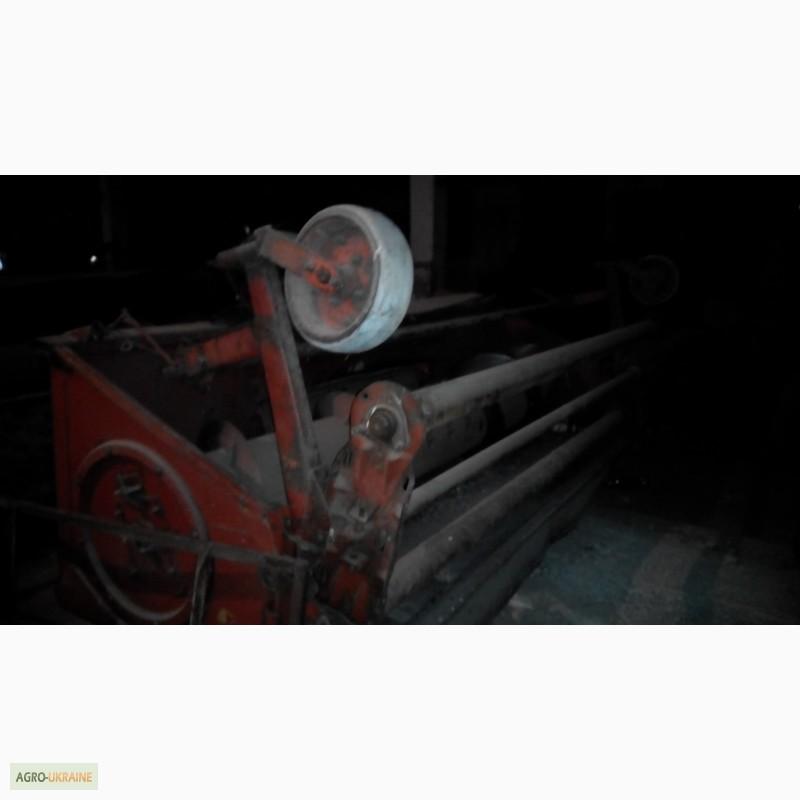

DON-1500 pick-up truck, Dnepropetrovsk region.

The pick-up platform is intended for picking up rolls with a separate method of cleaning. It is hung on the inclined chamber of the screwself-propelled harvesters combine harvesters. The pick-up platform consists of a pick-up platform with an auger and a spacer with a beater.
The pick-up platform is hung on the inclined chamber of the harvester instead of the usualharvester platform with a cutting device. The microrelief of the field is copied by the picker. The platform is connected to the inclined camera rigidly, without copying. The selection process is as follows below. The harvester moves along the roll so that the roll is located between the supportingwheels 8 in the middle of the pick-up width. Picking fingers of the picker raise the roller, comb the stubble, feed the bread mass to the auger. Having dropped the mass, the picking fingers come into sliding contact with the edge of the stalk remover and are freed from the stalks remaining on them. The normalizer presses the bread mass to the conveyor, preventing it from being blown by the wind, and directs it under the auger of the platform. Then the bread mass is fed with an auger to the beater of the spacer and then to the thresher by the conveyor of the inclined chamber.
