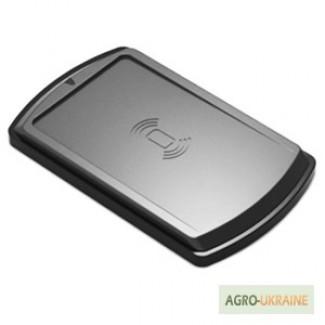

NFC RFID Reader SL600, Chernovtsy region.

Developed on the basis of the NXPNFCIC repeater, the SL600 is a mini read/write device. This RFID reader supports MIFARE in classic 1K mode, MIFARE in classic 4K mode, MIFARE in ultralight, MIFAREDESFire and NFCNFCIP-1 modes. The maximum current value is less than 50 mA. It integrates all the necessary components and the antenna into the PCB.

SL600 can offer NFCIP-1 functions. Users can send an NFC message to an NFC device to open a web link or display text in a window.

Frequency 13.56MHz
protocol ISO14443, ISO18092 NFCIP-1(//tractor-service.com)
Tag supported Ultralight®, NTAG203, MIFARE Mini, MIFARE Classic® 1K,
MIFARE Classic® 4K, FM11RF08, *DESFire®
interface USB HID protocol
Working temperature -25°C ~ +70°C
Windows support system 32bit / 64bit
power supply voltage 2.5 ~3.6 VDC
Size 110 × 81 × 26 mm
