Crane scales VK ZEWS II (1000 kg), Chernivtsi region.

Kranovye vesy VK ZEVS, production LLC "Mir"wesov", Ukraine.

The scales of VC ZEWS are included in the state register of measuring equipment of Ukraine No. U3493-14

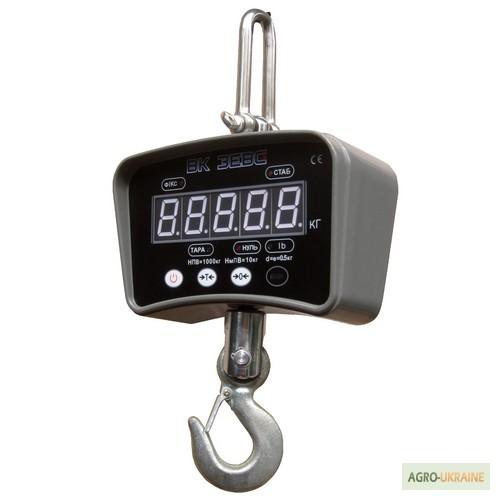

VK ZEVS II crane scales are intended for static weighing of cargo both during loading and unloading operations atwarehouses, and during production at the stages of the technological cycle. For ease of use, the scales are equipped with a swivel hook that allows you to turn the load 360 degrees, and an automatic latch on the hook prevents the sling from accidentally jumping off the hook. The balance body is made of durable aluminum alloy and reliably protects electronics from mechanical damage. The degree of dust and moisture protection of the scales IP54 allows you to use the scales in open areas even in the rain. The bright LED display ensures visibility even in the sunniest weather.
At industrial enterprises, such scales are used not only as technological equipment, but also for commercial purposes.
The metrological characteristics of VC ZEWS III scales fully meet the requirements of EN DSTU 45501:2007.
The scales are intuitively easy to operate and do not require special skills in operation. The scales are equipped with functions:

weight averaging (HOLD function);
Gross/Net indications for selection;
accumulation of weight (summation of the results of several weighings);
tarirovanija;
fixation of the displayed scales after removing the load;
preservation of peak loads.
For long-term autonomous operation, the scales are equipped with energy-saving functions.

Characteristics of crane scales (suspended) VK ZEVS II

VK ZEVS II

300

500

1000

1. Accuracy class
Secondary (III) DSTU EN 45501:2007

2. Mach, kg
300

500

1000

3. Min, kg
2

4

10

4. Discreteness, kg
0.1

0.2

0.5

5. Safe overload (critical)
125%(400%)Mach

6. Operating temperature range
-10°С ̴+40°С

7. Degree of protection
IP 54

8. Body
High-strength aluminum alloy

9. Swivel hook (360˚)
yes

yes

yes

10. Question
Autonomous up to 80 hours, built-in rechargeable battery 6V/5Ah

11. Display type
LED, five-digit (character height 30 mm)(//tractor-service.com)

13. IR remote control (up to 10m)
yes

yes

yes

14. Remote control LCD panel (up to 250m)
no

15. Duplicating panel (character height 76 mm), built-in RS-232 interface
no

16. Cable for transferring data to a PC (5 m)
no

17. Additional battery 6V/5Ah and charger
optional

Recommended price, UAH.

(with VAT)

Specify

at the manager

Department of Higher Education

Name

A, mm

V, mm

C, mm

L, mm

Weight, kg

VK ZEVS II 300
20

80

24

350

4.1

VK ZEVS II 500
25

85

36

370

4.3

VK ZEVS II 1000
25

85

36

370

4,3
