Sell compression strain gauge Esit HSC ( Turkey ), Kyiv

Product description

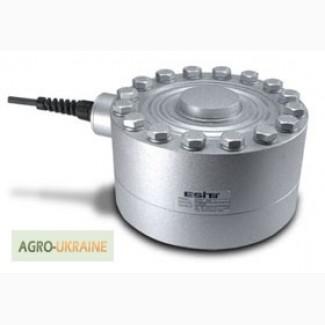

Strain gauges HSC 40-60-100 t
The HSC sensor model operates on the principle of compression, measuring force and mass with excellent accuracy. The accuracy of the strain gauge is not lost even with high overloads. Vertical or horizontal loads, as well as difficult working conditions are not an obstacle to the functioning of the HSC load cell. The steel case, covered with anti-corrosion paint, has a degree of protection IP68. A welded stainless steel cover closes the strain gauge area.
The main field of application of such sensors is automatic weighing systems, wagon or automobile scales, weighing systemscistern.

Model Nominal loading Minimum interval Maximum loading
HSC 40 40000 kg 8000 g 60000 kg
HSC 60 60000 kg 12000 g 90000 kg

Nominal load (Emax) kg 40000, 60000
Accuracy class (OIML R 60) C1 C3
Discreteness by class (nLC) 1000 3000
Minimum weighing interval (Vmin) Emax/3500 Emax/6750
Total error % Emax ≤±0.05 ≤±0.02
Error return to zero (DR) % Emax 0.0039
Minimum load % Emax 0
Maximum overload % Emax 150(//tractor-service.com)
Permissible horizontal overload % Emax 100
Destructive overload % Emax 300
Deformation (at Emax) mm ≤0.3
Maximum excitation voltage (Umax) V 15
RKP (Cn) mV/V 2 ± 0.1 %
Zero balance % Cn ≤±1.0
Input resistance Ω 385±20
Output resistance Ω 350±3
Insulation resistance MΩ ≥500
Compensated working range °C -10...+40
Operating temperature range °C -40...+80
Sensor material Steel
Protection class (according to classification EN60529) IP68
Cable length m 13
Cable diameter mm 8
Mass kg 22.5
Package weight and dimensions cm / kg 25x33x23 / 24.5
