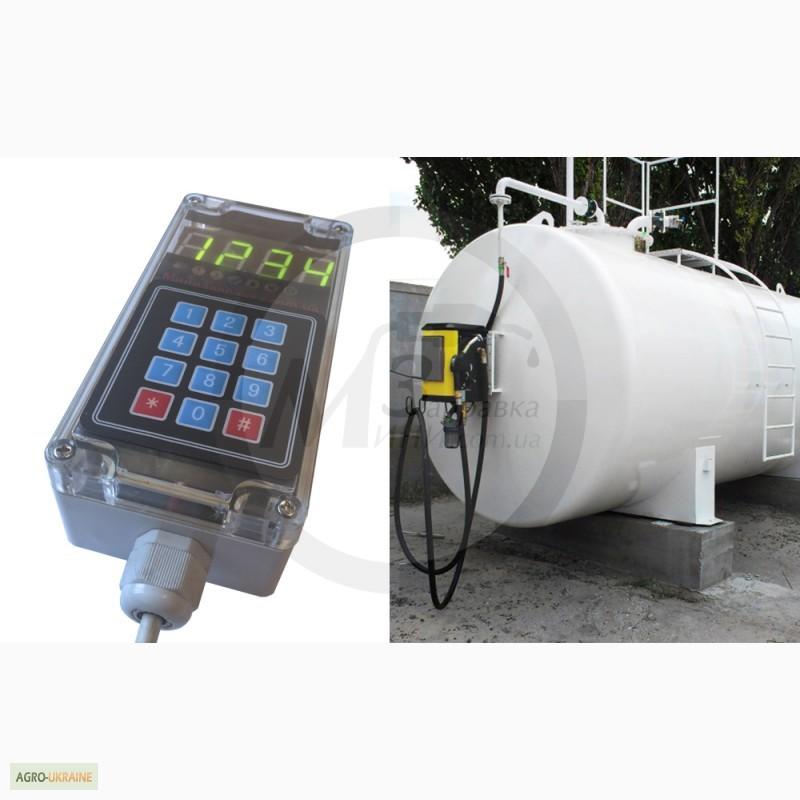

System of monitoring and management of stocks of DT, bio diesel, gasoline, kerosene, etc., Kyiv region.

Dosing ranges

1) from 1 ml to 9999 ml, the resolution of the task is up to 0.001 ml.

2) from 1 l to 9999 l, discreteness of the task up to 0.001 l

Accuracy depends on the used flow sensor, the controller itself does not introduce errors.

To assemble the pouring machine, it is enough to equip it with an electronic valve or a pump, a flow sensor + a fitting.

Principle of work:
(//tractor-service.com)
1) the user submits a key label (if authorization is enabled)

2) the user dials the required amount of volume that needs to be shipped

3) the controller starts the executive device (pump, valve)

4) upon reaching the required volume and length, the controller turns off the executive device and issues a signal to the operator, making an entry in the log about the operation.

5) if the controller's operating mode is a conveyor, repeated dosing will start automatically when the "permission" terminal is closed, otherwise the controller will go into standby mode for new tasks.

The event log, the user base are stored in the controller, information is downloaded or edited in text format when connected to a PC via an rs-485/usb converter.

It is possible to rework the device according to your wishes.
