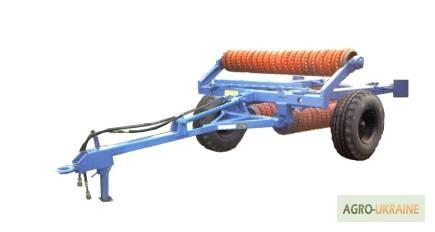

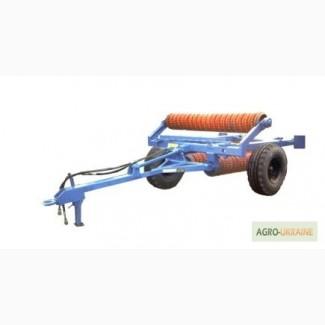

Gear-ring rink KZK-6-01, Cherkasskaya region.

Intended for pre-sowing and post-sowing soil rolling, grinding of the surface soil crust and partial leveling of the plowed field.The skating rink works at a humidity of 12-25%, the hardness of the soil in the treated layer is from 0.25 to 0.6 MPa. The frame is made of a square fully stretched tube.
Distinctive features:
- thanks to its own transportwheels allows you to quickly move from field to field and over considerable distances;
- reliable bearing units.
Brand KZK-6-01
It is aggregated with tractors of traction class 1.4
Semi-trailer type
Width of capture, m 6
Productivity, ha/time 3.54
Working speed, km/h 6 - 10
Transport speed, km/h 20
Outer diameter of the ring, mm:(//tractor-service.com)
wedge-shaped 460
toothed 450
Dimensions in working condition, m:
length 3.58
width 6.00
height 0.97
Overall dimensions in transport condition, m:
length 4.93
width 2.32
height 1.63
Average service life, years, not less than 7
Total weight, kg 3360
