Cultivator of continuous processing KPS-4 "BELLOTA", Spain, Kirovohrad region.

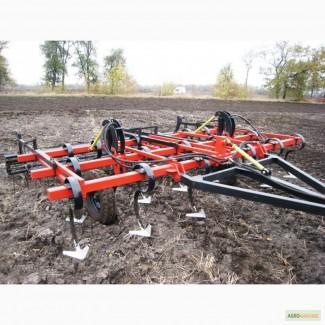

VibrocultivatorKPS-4 with working bodies of the trademark "BELLOTA", Spain.
Thanks to the ideal distribution of its weight, the exact observance of the depth of cultivation and the excellent ability to copy the relief of the soil, thecultivator KPS-4 with working bodies "BELLOTA" reliably copes with the task of soil cultivation on steam and during the early springpre-sowing campaign.

Constructive features:

The arrangement of nodes of working bodies in 3 rows ensures thorough continuous cultivation of the soil;
It does not clog when cultivating on high crop residues (the distance between the working bodies is from 68 to 90 cm.) The clearance in the working position is greater than that of standard KPS cultivators (57 cm.). As a result, the speed of soil processing and productivity increases;

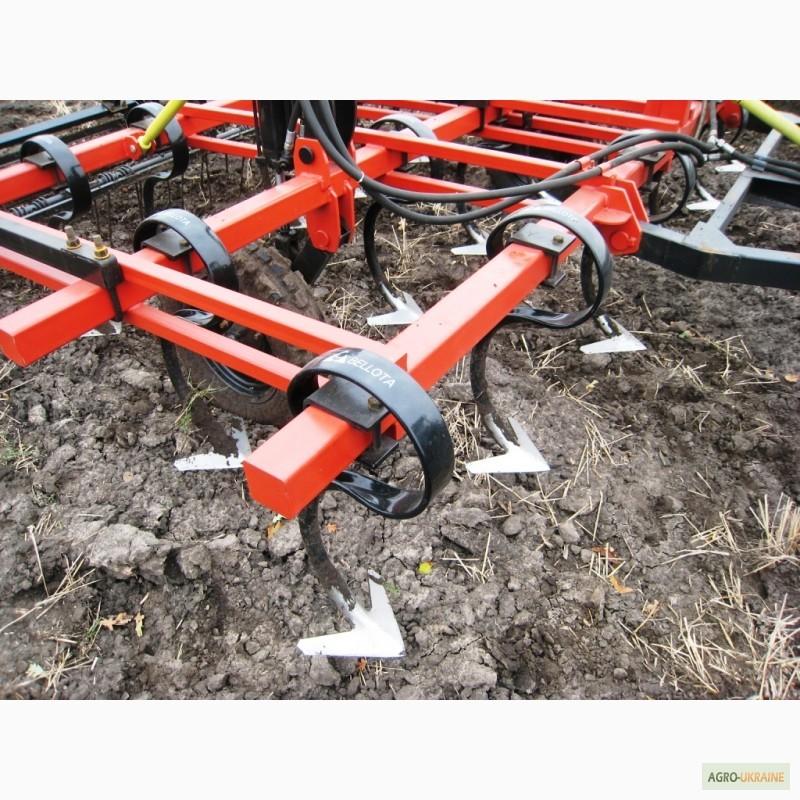

The unit of the working body (bracket, S-post, arrow foot) was created by the company "BELLOTA", Spain. During operation, the powerful S-post, thanks to its special parameters, keeps the arrow leg in the horizontal plane strictly at the specified depth (it does not go back and does not bury itself), thus preparing an excellent seed bed, uniform for the entire cultivated surface of the field. The vibration of the working body, formed during work, effectively contributes to the grinding and loosening of the soil into a fine fraction. Thus, smaller lumps of soil are placed in the lower part of the treated layer, which allows good moisture retention and ensures rapid and uniform seed germination;
The use of arrow claws made of boron-containing steel produced by "BELLOTA" guarantees high-quality cutting of weeds and the resource of their uninterrupted operation, which is more than 2 times higher than domestic analogues;
The vibratory cultivator is equipped with a two-row spring harrow. Thanks to significantly improved adjustments of attack angles and horizontal positioning, the harrow perfectly copes with the task of "combing out" cut weeds;
Developed over many years of experience, the design of the rollers located behind the spring harrow is equipped with spring compensation mechanisms, which allows the vibratory cultivator to effectively crush, crush lumps of earth and compact the surface layer of the soil;
The vertical lifting of the cultivator into the transport position occurs with the help of two hydraulic cylinders and provides
safety, accident-free turning, quick transition from transport position to working position and vice versa.
(//tractor-service.com)
Vibrocultivator KPS-4 with working bodies of the trademark "BELLOTA", Spain.
Vibrocultivator KPS-4 with working bodies of the trademark "BELLOTA", Spain.
Thanks to the ideal distribution of its weight, the exact observance of the depth of cultivation and excellent possibilities to copy the relief of the soil, the KPS-4 cultivator with "BELLOTA" working bodies reliably copes with the task of cultivating the soil in pairs and during the early spring pre-sowing campaign.

Constructive features:

The arrangement of nodes of working bodies in 3 rows ensures thorough continuous cultivation of the soil;
It does not clog when cultivating on high crop residues (the distance between the working bodies is from 68 to 90 cm.) The clearance in the working position is greater than that of standard KPS cultivators (57 cm.). As a result, the speed of soil processing and productivity increases;
The unit of the working body (bracket, S-post, arrow foot) was created by the company "BELLOTA", Spain. During operation, the powerful S-post, thanks to its special parameters, keeps the arrow leg in the horizontal plane strictly at the specified depth (it does not go back and does not bury itself), thus preparing an excellent seed bed, uniform for the entire cultivated surface of the field. The vibration of the working body, formed during work, effectively contributes to the grinding and loosening of the soil into a fine fraction. Thus, smaller lumps of soil are placed in the lower part of the treated layer, which allows good moisture retention and ensures rapid and uniform seed germination;
The use of arrow claws made of boron-containing steel produced by "BELLOTA" guarantees high-quality cutting of weeds and the resource of their uninterrupted operation, which is more than 2 times higher than domestic analogues;
The vibratory cultivator is equipped with a two-row spring harrow. Thanks to significantly improved adjustments of attack angles and horizontal positioning, the harrow does an excellent job of "combing out" cut weeds;
Developed over many years of experience, the design of the rollers located behind the spring harrow is equipped with spring compensation mechanisms, which allows the vibratory cultivator to effectively crush, crush lumps of earth and compact the surface layer of the soil;
The vertical lifting of the cultivator into the transport position occurs with the help of two hydraulic cylinders and provides
safety, accident-free turning, quick transition from transport position to working position and vice versa.
