Nippled drinker for young birds, broiler chickens (360 degrees), Kyiv

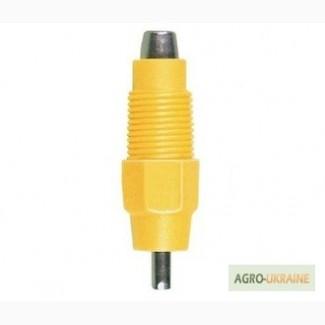

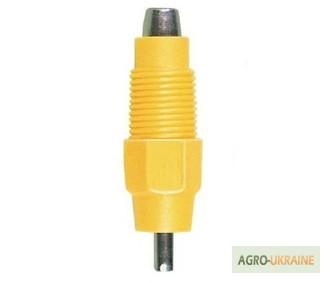

Nipple drinker for young, broiler chickens (360 degrees)
The nipple drinker is made in Turkey and has a double closing system that works 360 degrees, that is, it works both when the nipple is tilted and when it is raised, unlike the 180 degree drinker, which works only when the nipple is raised. Such nipple drinkersdrinkers are recommended to be used for young birds, broiler chickens, as well as quails.
(//tractor-service.com)
The diameter of the nipple is 3 mm. Connection with a pipe — a thread with a diameter of 9.5 mm. The body is plastic, the nipple and the inner working part are made of stainless steel. The throughput is from 80 to 100 ml/min.

Nippelnye drinkers are installed at the rate of 10-15 birds per one nipple. To ensure a sufficient drinking front, nipple drinkers should be installed on the pipe at a distance of 15 to 25 cm from each other, depending on the density of plantingптыцы. Holes for drinkers should be drilled with an 8.5 mm drill bit. Pre-threading is not required.
