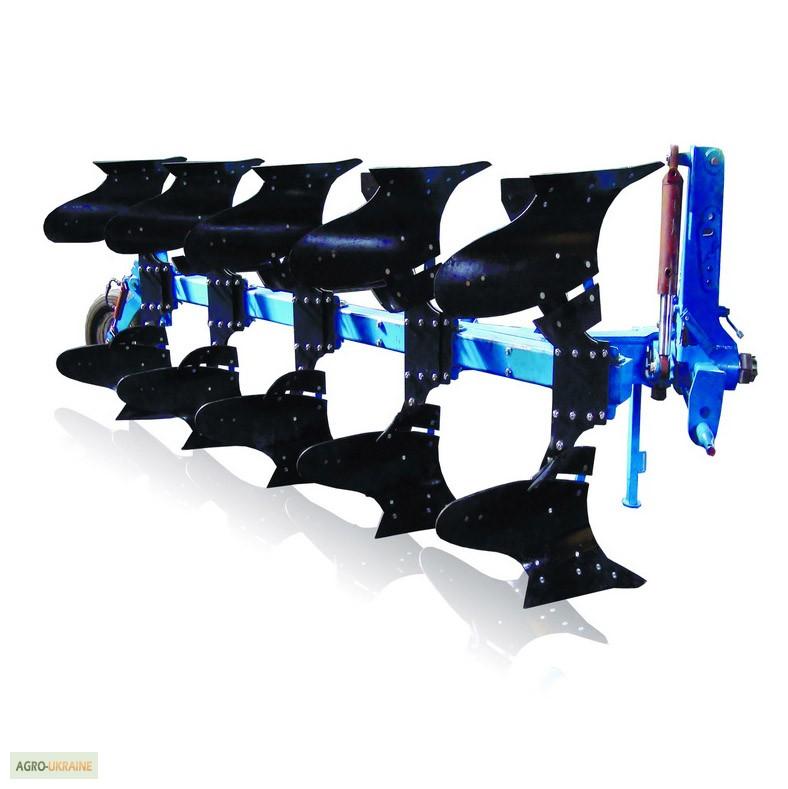

Plow reversible hinged PON-5, Cherkasy region.

Plowreversible hingedMON-5 (with adjustable width of grip). It is intended for smooth plowing on soils not clogged with stones, slate and other soil inclusions, with a specific resistance of up to 0.09 MPa.

Smooth plowing makes it possible to provide soil treatment without ridges of landfills and fallow furrows, convenient for the operation of seeders, combines, tractors and other equipment. A distinctive feature of this plow is the step-adjustable width of the body with 4 positions of 28, 32, 36 and 40 cm. Soil moisture 12-23%.

At work:

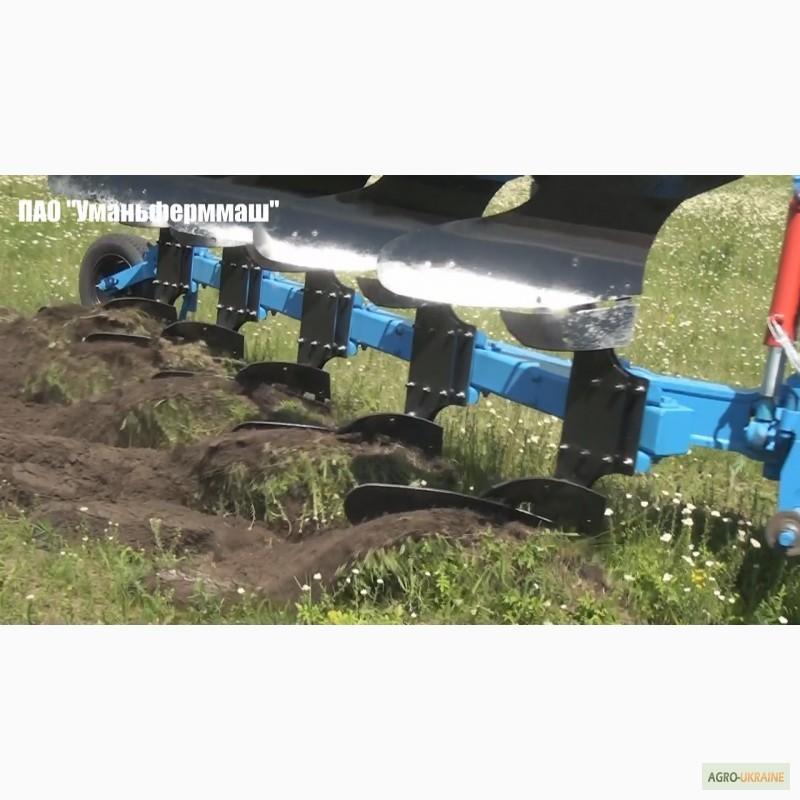

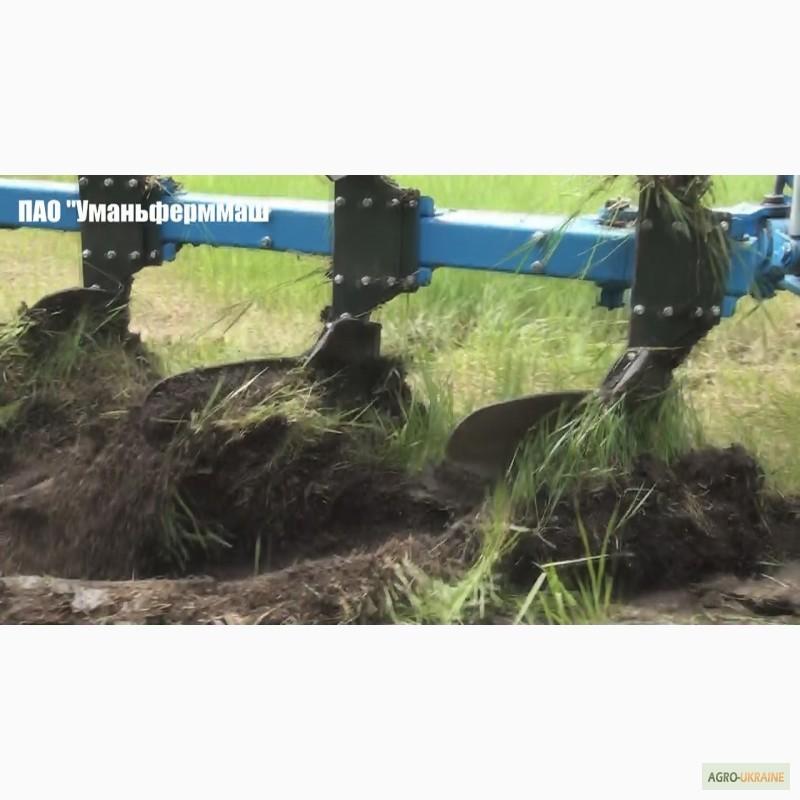

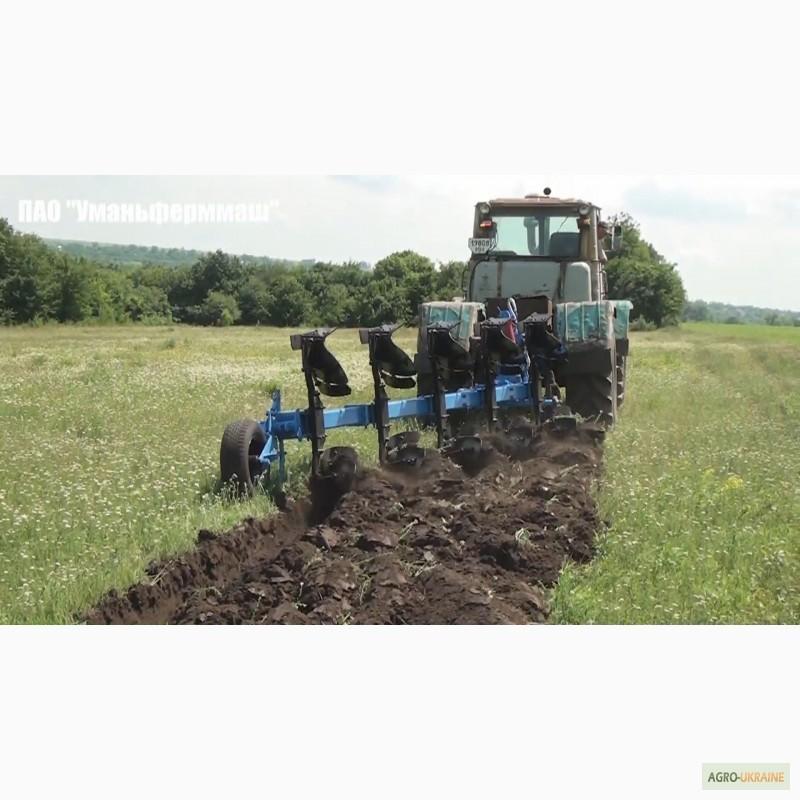

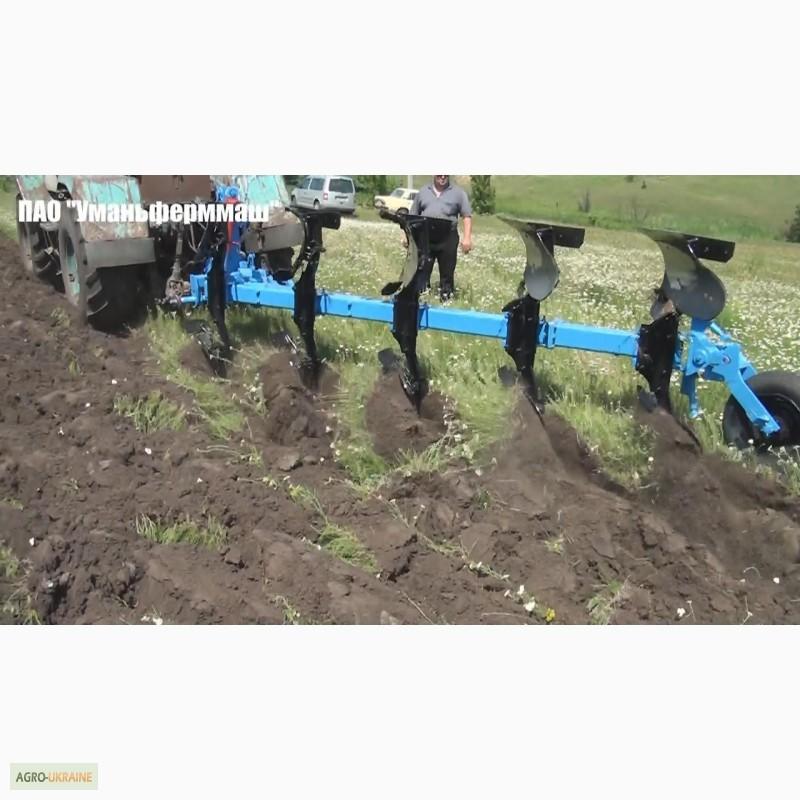

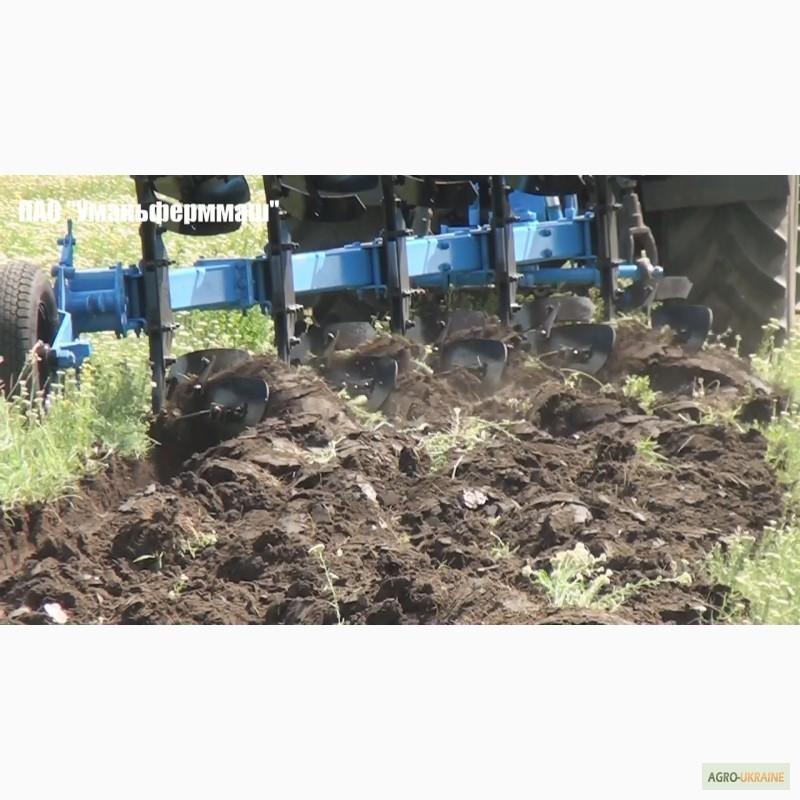

Plow PON-5 purchased and working at LLC named after Shevchenko, Potoky, Ekaterinopol district, as it was said in the video by the chief engineer Vasily Ivanovich - the plow showed itself excellently and compared to its domestic predecessors, it worked where others would not have worked, the plow worked on a field that had not been cultivated for 25-30 years, the overturning of the reservoir, Vasyl Ivanovich said, is going 100%. The enterprise bought a plow and works to this day.

The plow was purchased and is working at the Gordynko farm.
Kirovohrad region, Kirovohrad district. Mr. Veseloe
Despite bad weather and torrential rain in 25 minutes. before start-up, but this did not affect the start-up of the unit. As a result, the director of FC "Gordienko" liked the result of the work as well as the quality!(//tractor-service.com)

Aggregation with tractors of traction force 105 (T-150, T-150K)
Productivity, ha/time not less than 0.5
Gripping width, m 1.4-2.0
Working speed, km/h 4-8
Cultivation depth, cm up to 16
Mass, kg 1160
Cover width, cm 28, 32, 36, 40
The distance between the hulls along the path of the plow, mm not less than 850
Plowing depth, cm up to 30
Dimensions, mm: w2650 d4950 h1650
