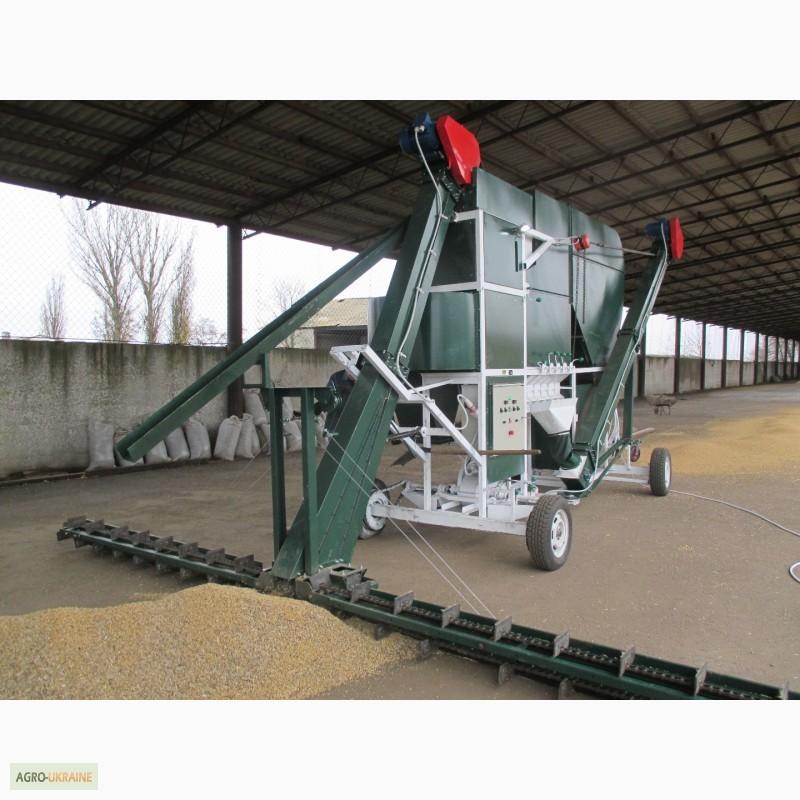

SOK-25 self-propelled pile cleaner (based on a separator), Cherkassy region.

For sale self-propelled cleaning complex complex SOC-25

Product description

The self-propelled cleaning complex SOC-25 is the latest development of Agro-Vygs NPK, which has already proven itself as one of the best solutions for post-harvest processing.

With this model, we open a line of unique high-tech multifunctional mobile machines for grain cleaning and calibration.

The SOC-25 completely replaces the ZAV-25 and, moreover, combines all the operations performed on the ZAV in one, significantly simplifying grain processing, saving the farmer time and effort.

SOC-25 is a mobile multifunctional ZAV-25

The SOK-25 self-propelled cleaning complex can be used at currents,elevators andwarehouses floor storage. The SOK-25 has the functionality of the most modern Zava, equipped with the best today's separator, the ISM-25 TsOK.

When using SOK-25, the grain does not need to be fed into the loading hopper by conveyors. The machine rolls up to the pile, picks it up and carefully sorts it into fractions: grain in three categories separately, non-grain waste, dust and garbage separately in a special garbage container.

На выходе из машины откалиброванной calibrated grain can be fed out of the machine at any height up to 4.2 meters or rolled from any side of the machine where necessary.

The SOK-25 unit is designed on the basis of the ISM-TsOK separator, so it has all the properties of a TOR™ separator equipped with a closed-cycle cyclone-precipitation complex.

Functionality of grain cleaning MACHINE SOK-25

In one cycle, the SOK-25 performs the following operations:
- Загрузка вороха
- Cleaning the pile
- Grain drying
- Calibration of seeds(//tractor-service.com)
- Grain loading
- Unloading non-grain waste into a special container.

GROWTH UP TO 98%

ADVANTAGES :

economy;
environmental friendliness;
ease of control;
reliability;
durability;
Comfort.

TECHNICAL CHARACTERISTICS:

Type: self-propelled
Drive: Electric three-phase
Productivity, cleaning / calibration modes: 25 / 12.5 tons per hour
Installed total power: 6.4-9 kW
Working overall dimensions, H / L / W: 3500/6300/4500 mm
Transport dimensions, H / L / W: 3500/6300/1470 mm
The departure of the unloading conveyor is 4000 mm.
Working adjustment of the height of the shipment: 1000-4200 mm
Weight: 1600 kg
Noise level: 85 dB
Number of operators: 2
