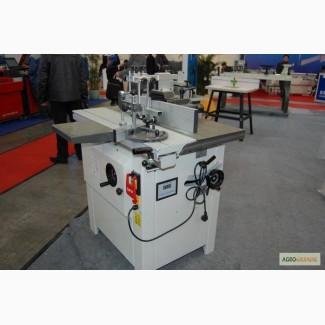

Zenitech DF 3 wood milling machine. With an inclined spindle, Kyiv

Frezer with an inclined spindle with an angle of inclination from +5 to -45 degrees.
Cutting curved surfaces, transverse planing, selection of folds, grooves, ridges and much more - easily performed on DF 3.
Made with an economical electric motor with a power of 2.8 kW.
Engine protection is provided by the installed fuse
A movable table will provide comfort when working at the machine.

Technical characteristics:
Engine power, kW 2.8
Engine speed, rpm 2800
Engine protection: fuse
The size of the cast iron table, mm 1000 x 360
The size of the movable table, mm 1000 x 240
Movement of the movable table, mm 1200(//tractor-service.com)
Table height, mm 900
Spindle diameter, mm 30
Spindle stroke, mm 100
Passage diameter, mm 200
Spindle (shaft) inclination from +5° to - 45°
Max. diameter of the tool, mm 180
Speed, rpm 1800 / 3000 / 6000 / 9000
Inlet pipe, mm 100
Net weight/gross weight, kg 218 / 270
Package size, mm 1150 x 730 x 1155

Warranty 12 months.
