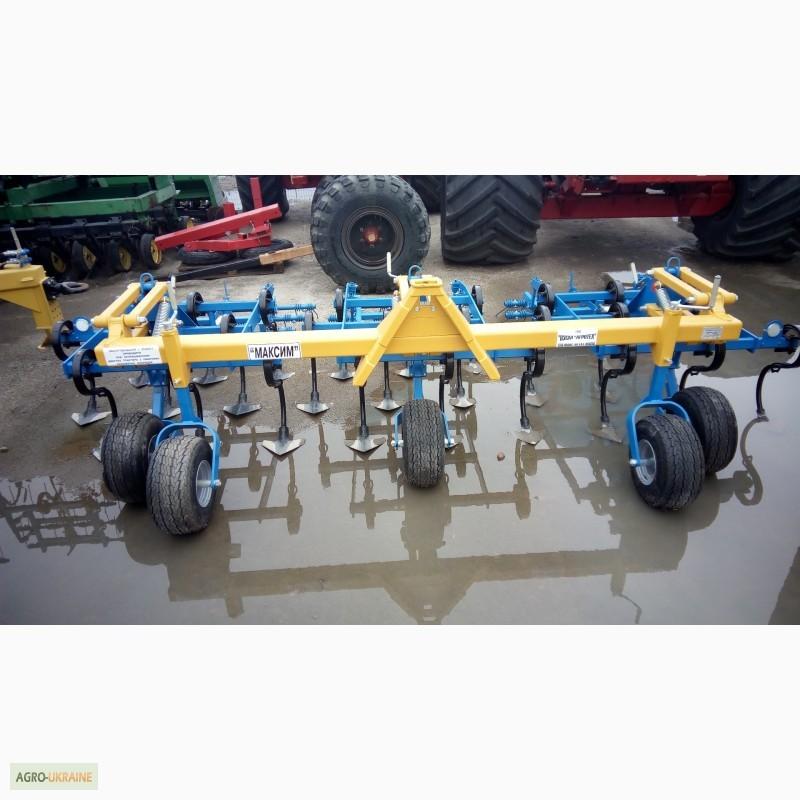

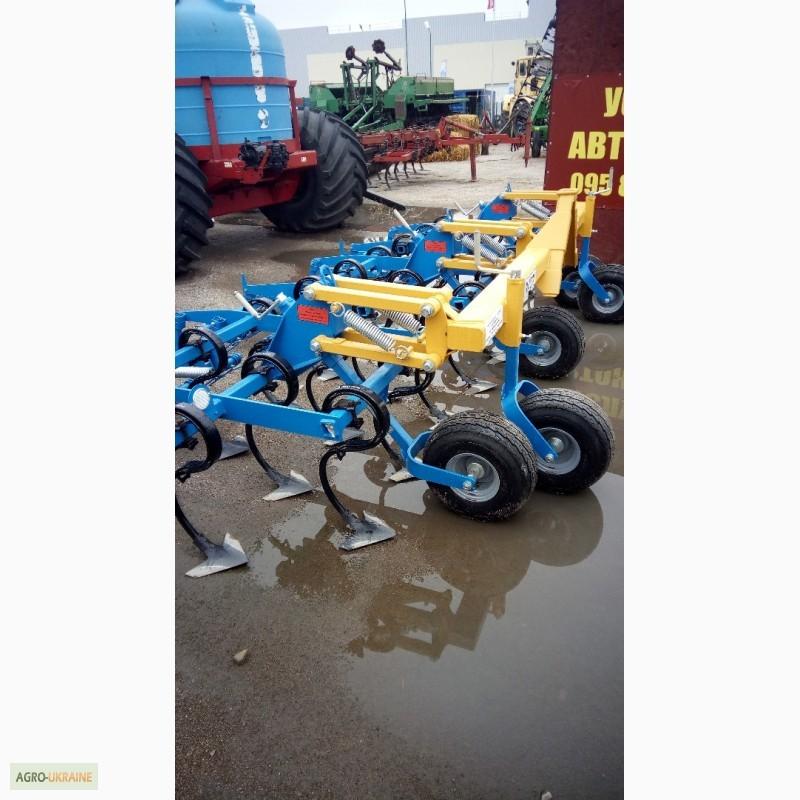

Steam cultivator KPN-4, 5, Kirovohrad region.

Additional aggregate equipment: tooth harrow
Number of working bodies, 142
зубов пружинных harrows: 27/37 pcs.
The maximum processing depth: 12 cm
Maximum productivity: 5.4 ha/hour
Maximum working speed: 16 km/h.
Maximum transport speed: 20 km/h
Mass of the unit: 750 +- 20 kg
Working organs: arrow feet
Country of manufacture: Ukraine
Aggregation type: hinged.
Working width: 4.7 m
Overlap of workerscultivator organs: 80 mm
Ground clearance: not less than 300 mm

Overall dimensions
In transport position:(//tractor-service.com)
- length 3320 mm
- width 4700 mm
- height 1700 mm
In working position:
- length 3320 mm
- width 4700 mm
- height 1130 mm

The cultivator is intended for continuous surface cultivation of the soil. Does not affectобработки почвы. Не затрагивает
formed soil structure. Loosens the surface of the treated area. Breaks
formed compactions and lumps. Increases the intensity of metabolic processes in the soil.
Opens the access of moisture and air to the specified depth. Provides uniform processing
to a given depth across the width of the grip. Takes care of "couples". It is effective
a tool in the fight against the sprouts of weed plants. Cuts their roots. Stirs the remains
with soil Creates an additional protective and nourishing layer. Simultaneously with cultivation
harrowing is taking place. Such a constructive solution increases the productivity of the
works Allows you to save time and fuel resources for processing. Raises
profitability of the entire production process.
