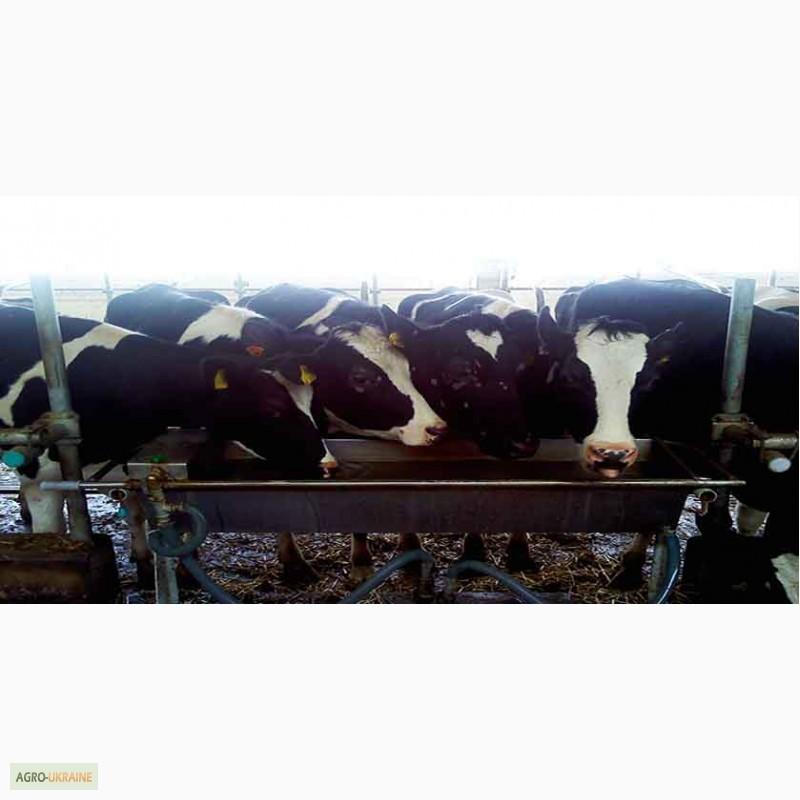

Group drinker, Vinnytsia region.

A drinker for the unattached maintenance.
Group drinking sessions:
- Drinker for calves PGTSP 00.000 - 0.65m.
- For cows - 1.2 m, 1.5 m, 2.0 m, 3.0 m.:
* with heating PHO.P;
* without PHO heating. - 1.25
Group water heaters with water heating PHO.P.00.000 and without water heating PHO.00.000.

Ladles are made of stainless food grade steel. The length of the slats is 1.25 m, 1.5 m, 2.0 m.(//tractor-service.com)

A valve mechanism with a large throughput of up to 40 l/min is used to fill the water bottles. with stainless rods and adjustment mechanism

Pumps are reversible, which allows for quick, convenient and easy maintenance during operation. It is attached to the concrete floor with anchor bolts.

Water heaters with water heating use the KEO-15/380V water heating and water circulation system. The system makes it impossible for the valve mechanism and water in the pump to freeze.

The KEO system has protection against "dry running", an air release valve from the water system, short-circuit protection, water temperature regulation, circulationpump. Water temperature is regulated by 6 kW and 9 kW switches.

The indoor water supply system is made of a PE-32x3 pipe, which is laid at a depth of 600 mm with insulation in trenches around the room.
