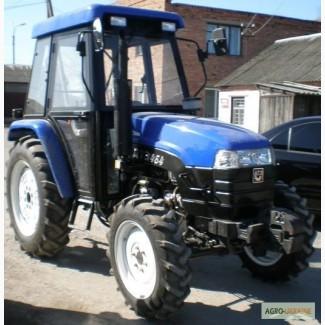

Technical characteristics of the DTZ 454 tractor
Power 45 hp.
Wheel formula 4x4
Engine type vertical, 4-cylinder 4-stroke diesel with forced water cooling and direct injection.
Start electric starter with safe start
Volume 3175 cm3
The cabin is heated +
Cylinder diameter/piston stroke 95/112
Fuel consumption of the engine is 232 g/kW*h.
Type
fuel pump plunger, row
Engine crankshaft revolutions 2300 rpm
Traction force 11.3 kN
The type of engine oil is mineral or semi-synthetic for diesel engines.
Oil consumption in the engine is 2.02 g/kW*h.
Checkpoint 8+4
The type of oil in the gearbox, rear/front axle is mineral for diesel engines
There is a rear differential lock.
Dry, disc clutch
There is a hydraulic power steering.
Cooling system fan drive V-belt transmission
(//tractor-service.com)
Drum-type brake mechanism
Power take-off shaft revolutions 540/1000, rear, 8-slotted
The pump type of the hydraulic system is a gear pump
The load capacity of the hinged mechanism is 662 kg.
Ground clearance 325 mm
Wheel base 1990 mm
Rear track
wheels 1200-1500 m
The track of the front wheels is 1250 m.
Size of rear
tires 12.4-28
The size of the front tires is 8.3-20
The minimum turning radius is 4.5/3.7 m
Theoretical forward speed 0.32-31.88 km/h
Theoretical speed of backward movement 0.47-11.01 km/h
The volume of the fuel tank is 42 l
The volume of the engine crankcase is 7 l
The volume of the gear case and rear/front axle is 28.5/7 l.
The volume of the engine cooling system is 9 l
The volume of the hoist body is 10.5 l.
Dimensions, (LxWxH) 3513x1750x2130 mm
Weight 2350 kg
