Transporters vertical DOZAMECH (Poland), Volyn region.

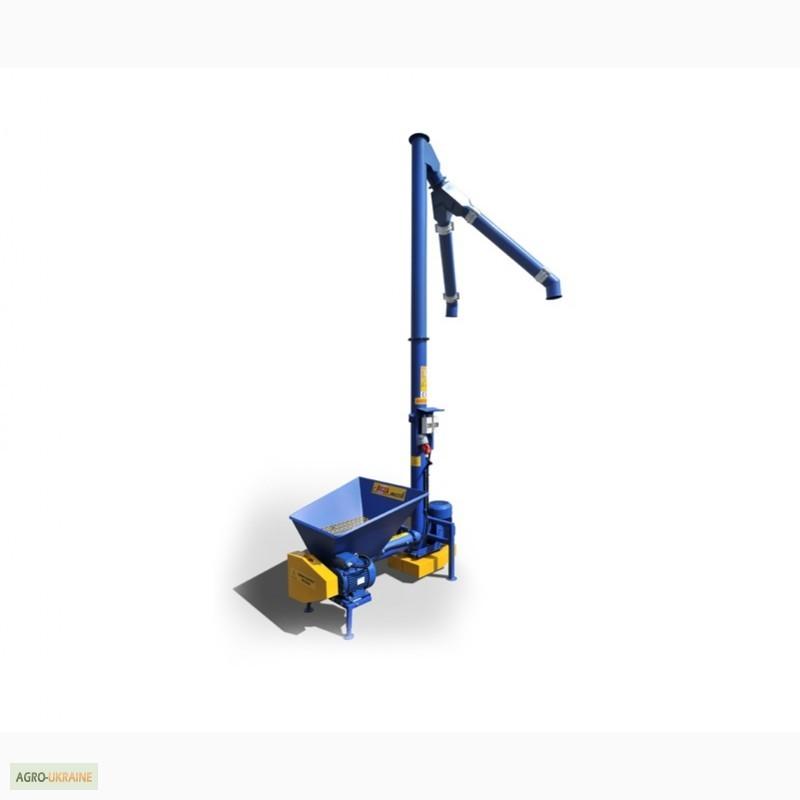

VERTICAL TRANSPORTER WITH HORIZONTAL SCREW

Vertical screw conveyor with horizontal screw side feeder. Diameter 150 mm. Productivity is about 15-22 t/h. The engine power is selected according to the ordered height, from 2.2 to 4.0 kW. The filling hopper is equipped with a 2.2 kW engine. In addition, it is possible to purchase gravity pipes and 2-way and 3-way distributors shown in the figure.(//tractor-service.com)

VERTICAL LOADING TRANSPORTERS

Vertical screw conveyor with a diameter of 150 mm and a working length from 4 m to 12 m. Indispensable whenloading grain into highsilos. Productivity is about 12-15 t/h. Option to choose 1,2,3 or 5 spills. The engine power is selected according to the ordered height. The height of the upper edge of the hopper is 0.9 m, but often our customers reduce the height of the transporter with the filling hopper to the same level as the floor covering, which allows you to quickly unload the entiretrailer.
