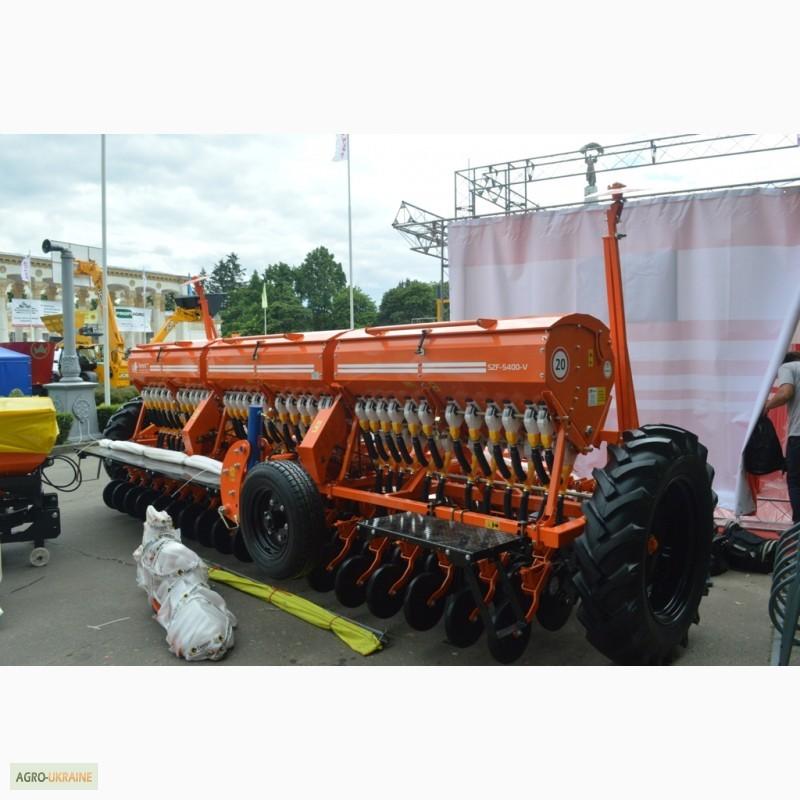

Grain seed drill SZF-5.400-V variator, universal sowing (СЗ-5.4) FAVORIT, Kirovohrad region.

Seeder SZF-5.400-V (SZF-3.600-V) is intended for regular sowing of seedscereals (wheat, rye, barley, oats), legumes (peas, beans, soybeans, lentils, beans, chickpeas, chickpeas, lupins), small-seeded crops (rapeseed, mustard), loose and medium loose seeds herbs, with simultaneous application of mineral fertilizers and rolling of the soil in the sown rows.

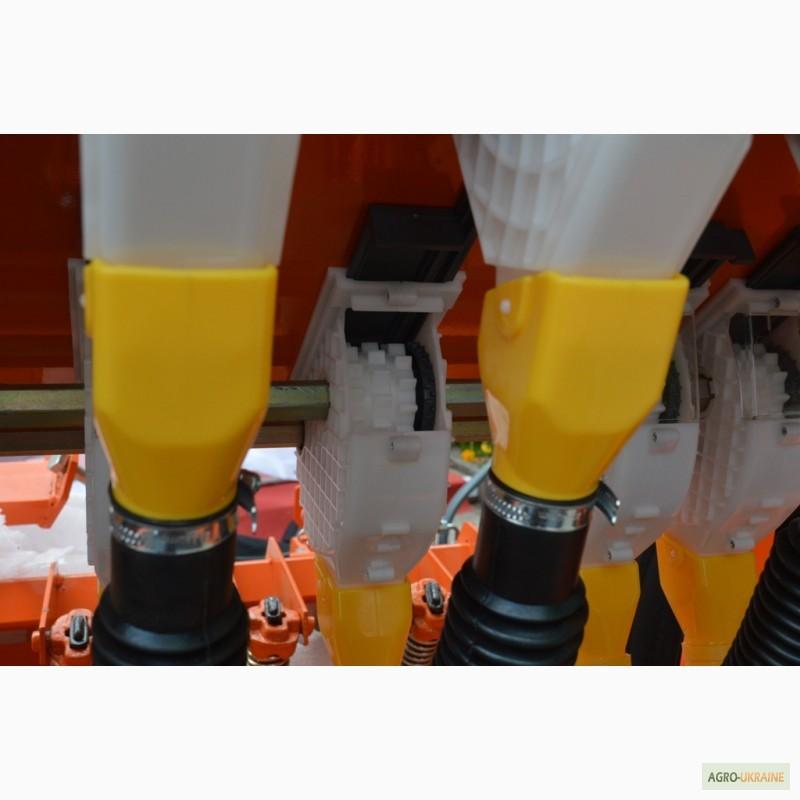

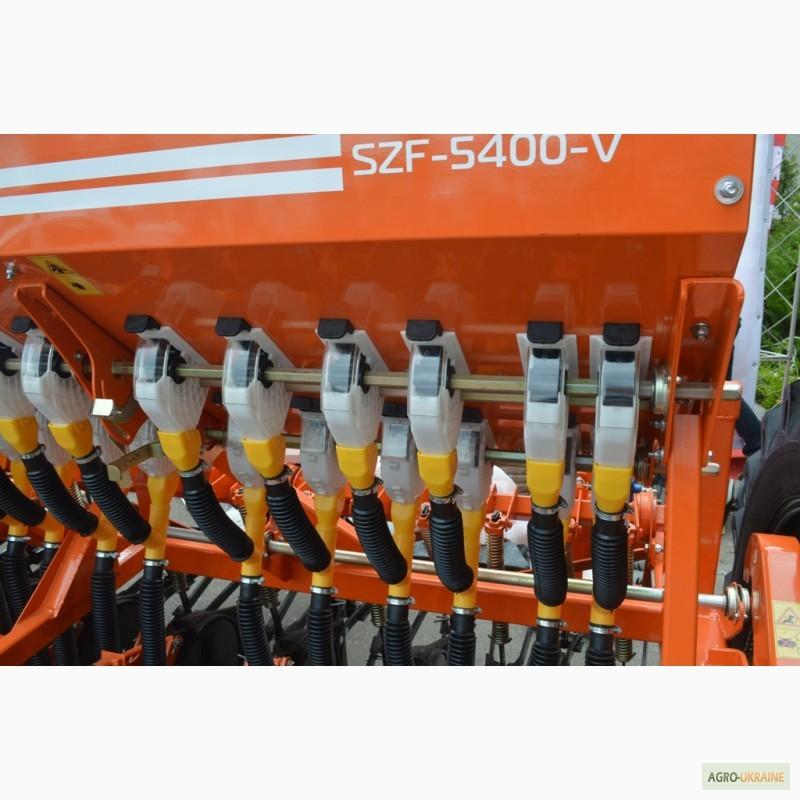

The grain seeding device of the new model has coils for sowing grain, leguminous and small-seeded crops, each of which has its own valve.

The fat seeding device is made of polymer material, which excludes the possibility of corrosion and increases its service life.

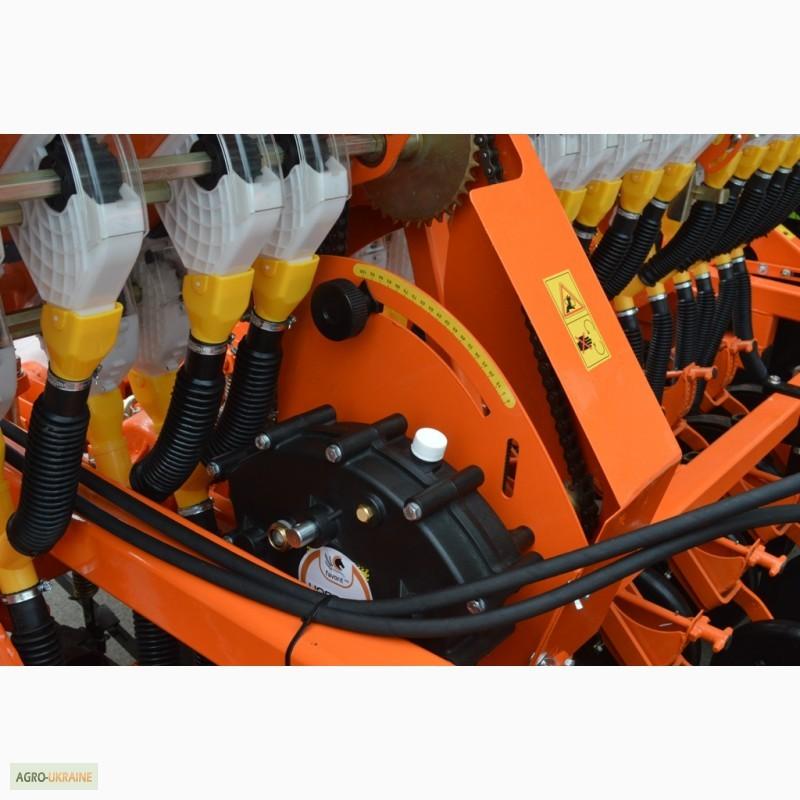

The seeder is equipped with variators, which allows you to quickly and accurately adjust the seeding rate for grain and fat seeding devices.

The central beam of the frame is strengthened, it eliminates the deflection of the unit.

The volume of the hopper has been increased to 1.5 tons. The hopper is equipped with a new type of shock absorber.

Powder (detailed) painting of the hopper significantly increases its service life and protects it from corrosion.

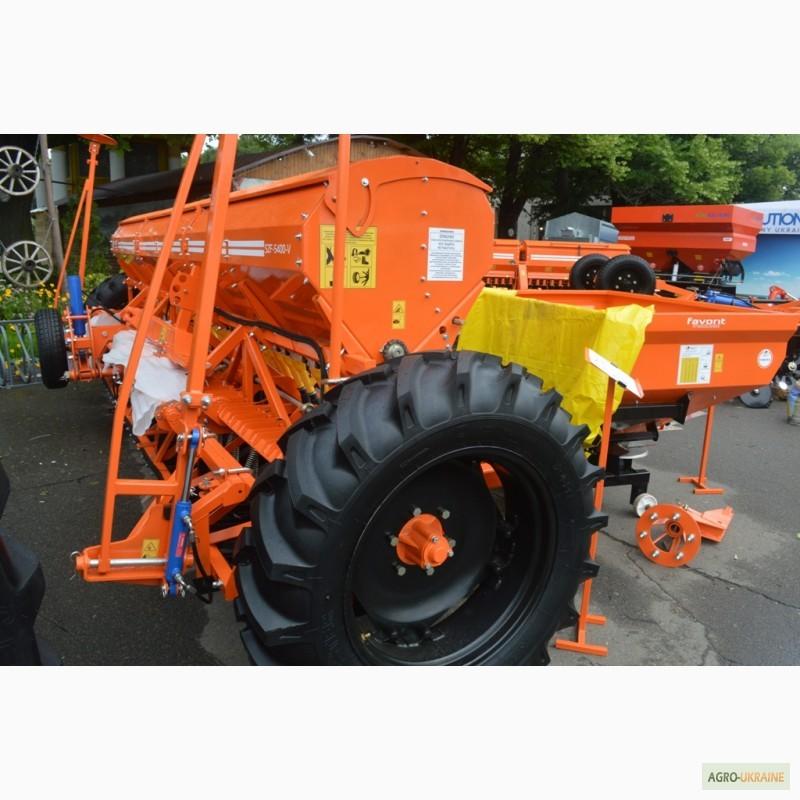

Wide rubber 12.4R28 evenly distributes the unit's load on the soil.

The seeder is equipped with markers on which separate hydraulic cylinders are installed, which facilitates their control by the operator from the tractor cabin.

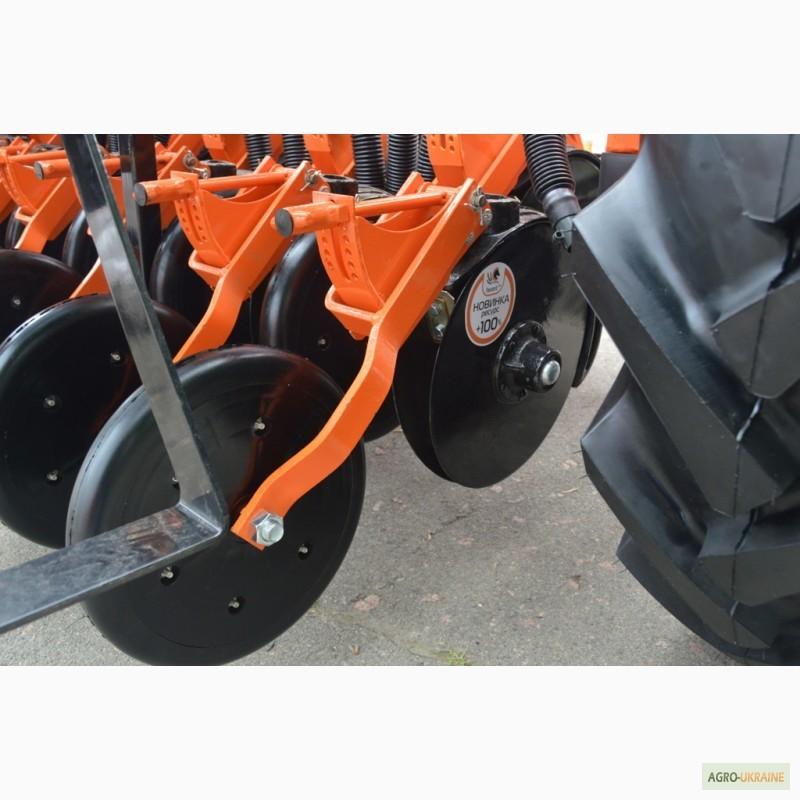

An offset coulter is installed - it prevents clogging of the coulter with weeds and harvest residues, reduces traction resistance, allows you to work on wet soils without soil sticking to the coulter.

The unified design of the unit ("coiler and rolling roller") allows you to adjust the coulter to a certain seed embedment depth with an interval of 1 cm. Maintaining the seed embedment depth parameter affects uniform germination and increased productivity.

To order, planters are equipped with a transport device, which allows them to be moved on public roads without the use of additional means of transport.(//tractor-service.com)

The seeder is equipped with various coulters and sets of sealing working bodies, thanks to which it can be converted from one version to another in the conditions of the farm.

SZF-5.400-V — intended for row sowing, equipped with two-disc coulters and finger wrappers;

SZF-5.400-06-V — for row sowing, equipped with two-disc single-row coulters and rolling rollers.катками.

Technical characteristics:

Gripping width, 5.4 m.
Number of lines, 36 pcs.
Width between rows, 15 cm.
Sowing norms:
- for seeds, 2 - 400 kg/ha
- for fertilized, 25 - 200 kg/ha
The depth of planting seeds and fertilized, 40 - 80 mm.
Working speed, 9 - 12 km/h
Productivity, 4.9 - 6.5 ha/hour
Volume of bunkers, (total): 179
- для семян, 1000 дм3
- for fertilized, 500 dm3
Mass, 2800 kg.
It is aggregated with tractors with a power of 80 hp.
