Equipment for drawing wires.

Machine for drawing reinforcement:

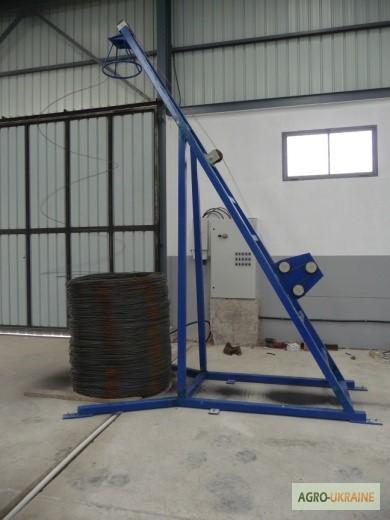

1. Vertical unit for unwinding wire from a coil (vertical pole)
• Structure: the structure is made of welded steel.
• Armature direction: from left to right.
• Dimensions of the armature coil: Max. coil weighing 2000 kg
• Dimensions: mm 4500x2000x1500
• Weight: 1000 kg

2. Mechanical scale removal
- It is used for cleaning fittings.
Structure: made of high-quality steel

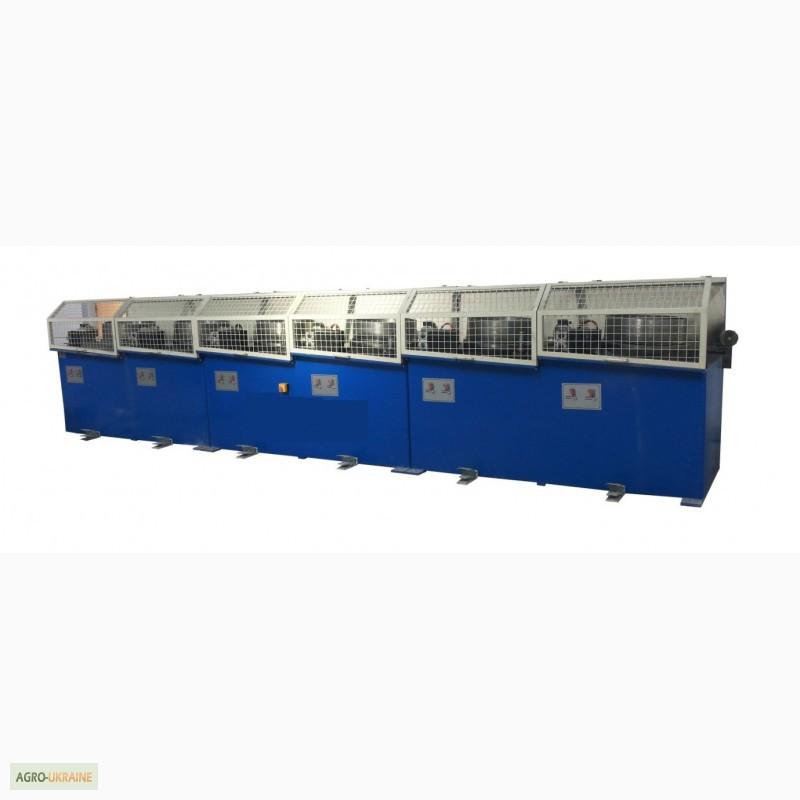

3. Machine for drawing armatures
• Suitable for drawing: low-carbon steel reinforcement
• Armature direction: left (depending on the client's request)
• Drawing range: inlet diameter 6.5 mm
diameter at the exit 2.2-3.0 mm
• Speed: Estimated speed 10 m/sec
Machine speed 8 m/sec (max.)
Feed speed: 1 m/sec.
• Number of blocks: 8 blocks
• Block diameter: 600 mm

The blocks are made of high-quality cast iron steel. The first unit with automatic control adjustment. It is carried out with the help of inductive sensors. The system supports the accumulation level set by the operator. In case of deviation from the level, the system will slow down or speed up. All blocks are placed on conical shafts, which are very easy to maintain.

Each sync unit with hand sensor.

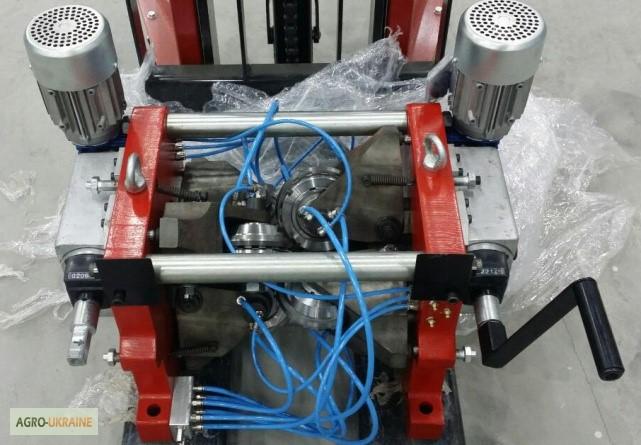

Matrix holder: 200x160x300
Handle Sensor: Analog Sensors
Part for measuring length: Encoder shaft for measuring machine length and speed.
Cooling
Matrices: water
Blocks: Water
Water: Consumption: about 15 m ^ 3/hour
Pressure: 2-3 bar
Temperature: 20÷30 °С
Water inlet: on the left side
Water drain: on the right
Electric motor drive: alternating current electric motors with protection.
Control system: Siemens PLC
Data entry: high-quality touch panel.
Distribution cabinet: steel sheet construction with a high level of protection. The distribution cabinet is designed with an air cooling system.

Supply voltage: during operation: 3X380 V alternating current, 50 Hz
control: 24V DC
Machine power: motors for the block: 22 kW
matrix holder motors: 0.75 kW
total power: 200 kW

Description of the machine

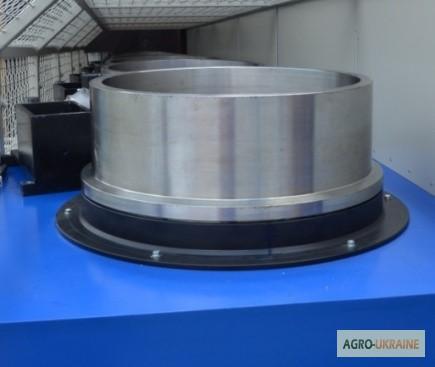

Drum Unit:
The drum blocks are made of high-quality steel. All units are placed on a tapered shaft, which provides very easy disassembly and maintenance. Each drum unit is water cooled.
Drum block and cooling system matrix:
On the inner wall of the drum unit, cooling water flows at high speed and creates enormous turbulence on the walls of the drums.
The matrix holder is cooled by water, it flows circulating around the matrix holder.
The water flow can be adjusted for each unit and each die holder using a tap located on the front of the units.

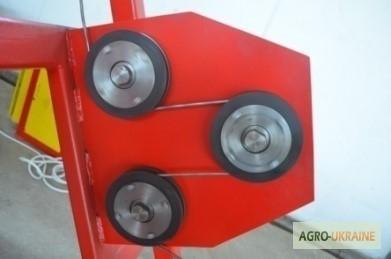

Hand sensor:
The hand sensor is made of welded construction and rollers. It is used to adjust and control the speed of blocks.

Matrix holder:(//tractor-service.com)
Matrix holder or calibration powder storage box. Each storage has a manual powder mixing rotor.

Electric drive and gearbox:
An electric motor with speed regulation by means of high-quality frequency converters is used for the electric drive of the machine.

Electrical cabinet: High quality parts: Siemens PLC, Siemens display, Hager electronics, Control Techniques management.

Part for measuring length:
This part is used to measure the length of the wire and synchronizes the drawing speed with the queue speed.

4. Rolling cassettes

Movable cassettes are used in the production of ribbed wire.
• Size: 600×400×500 mm
• Armature direction: from left to right
• Armature diameter: 3.00 – 4.00 mm
• Cassette holder: Automatic, with motors
• Power: 1.5 kW
• Speed: 10 m/sec
• Cooling: water

5. Winding mechanism on a coil

The winding mechanism is used to wind the armature onto a coil
• Armature range: 2.2-5.0 mm
• Speed: 10 m/sec, synchronized with the drawing line
• Drive motors: geared AC motors
• Brakes: Disc brakes
• Supply Voltage: Operating: 3x380V AC
Control: 24 V DC
• Color: car body: blue
moving part: white

Specification
Total power, kW 150-200
Block power, kW 22
The inlet diameter of the armature, mm 6.5
The output diameter of the armature, mm 2.2 - 3
Reinforcement drawing speed, m/sec 8 m/sec
Cooling matrix and drums: water
Livestock: 6-8 + moving cassettes
Machine dimensions: mm 1500x11000
Weight: kg 13000

Operating modes:
1. Automatic
2. Manual
The length of the armature winding mechanism: 1600x1200
Power of the armature winding mechanism: kW 15
Space required for operation: mm 3000x25000
Management: Siemens PLC
Siemens screen
Frequency controller: Control Techniques
Engines: Strojna
Sensor: Turck
