Loader for BigBeg 1t, Dnepropetrovsk region.

T466

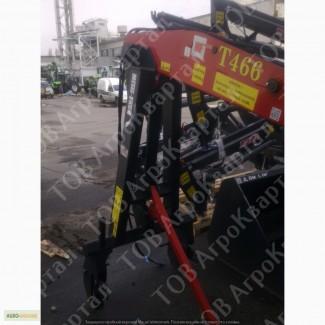

Spring-loaded loader for fertilizing in "BIG-BEG" type sheds
The T466 spring loader is designed for lifting and unloading bags with fertilizers of the Big-Bag type, as well as for direct fillingbody of fertilizer spreaders.
The loader can be aggregated to the tractor along with the fertilizer spreader.
The loader is adapted to work with atraction tractor class 2, equipped with a cab and a correct three-point hitch system for the attached equipment, as well as a one-man serviceable PTO shaft. For joint work with class 3 tractors, the manufacturer supplies special adapters.
It is prohibited to use the loader for transporting "Big-Bag" bags over long distances, as well as other work that does not meet the intended purpose.
Technical characteristics
Type Ed. change T466
Total width mm 1160
Total length mm 2126
Length with extended shoulder mm 2926(//tractor-service.com)
The total height of the machine standing on the base mm 2220
The total height of the machine standing on the base with the shoulder raised and extended mm 4639
Total height of the machine standing on the base with the shoulder raised and pushed in mm 3889
Max. load capacity kg 1000
Weight kg 350
Minimum working pressure MPa 16
Minimum flow strength l/min 25
Maximum working pressure MPa 20
Maximum flow power l/min 45
Power of aggregated tractor (min.) km 90
Category of three-point tractor hitch system - 2
Transport speed (max.) km/h 15
