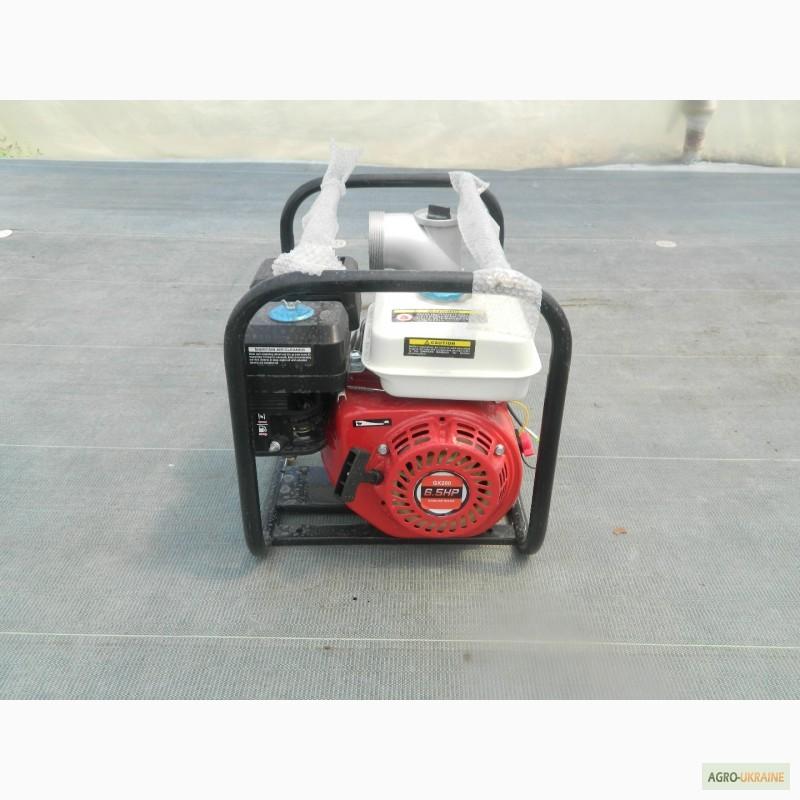

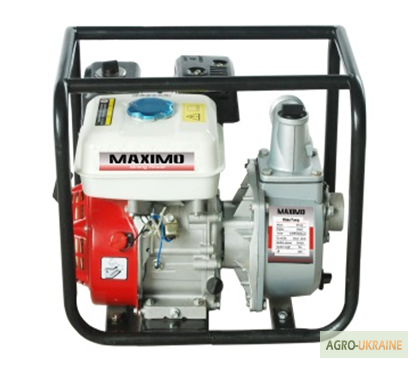

Motor pump DS-WP20 is a mobile and reliable assistant for pumping water, performing serious tasks for irrigation and fast drainage of the territory, used for extinguishing minor fires. In addition, the gasoline motor pump can be used in emergency situations, for pumping water from pits, cable trenches and flooded basements on construction sites. The purpose of the motor pump is to pump both clean water and water that is slightly contaminated with silt, crushed stone, fallen leaves, and other small extraneous objects.
Characteristics:
Engine type Four-stroke, single-cylinder with
by air cooling
The volume of the engine is 196 cm.3
Engine power 4.8 kW.
The diameter of the piston movement is 68×54 mm.
Unit weight 22 kg
(//tractor-service.com)
Pump DS-TP20
Inlet pipe 80 mm
Outlet pipe 80 mm
Liquid lift 24 m
The depth of liquid intake is 8 m.
Capacity 30 m3/hour.
Noise level 65 dB.
Recommended
fuel Gasoline not lower than A-92
Unit dimensions 470x385x405 mm
