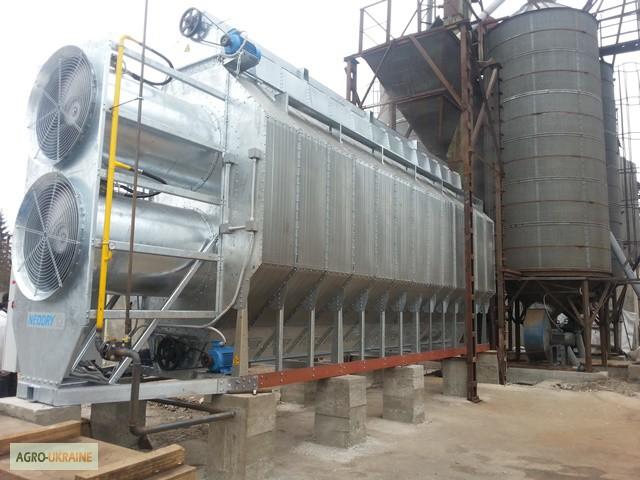

For sale Grain dryer, Ternopil region.

NEODRY grain dryers belong to the modular or column category. Structurally, they are made of modules and columns (sections), the number of which depends on the performance declared by the consumer.
When designing this dryer, all the advantages and disadvantages of similar analogues were taken into account. Therefore, these complexes are reliable, economical, easy to operate and maintain.
WORKING PRINCIPLE:
 The fan injects a flow of air from the environment into the chamber. The flow is heated by passing through a gas burner or a solid fuel heat generator. Next, the heated air passes through an internal chamber 1 m long, ensuring the uniformity of the temperature of the drying reagent at any point of the chamber.
 The grain enters the upper hopper, and the auger located there evenly fills the columns in turn. When all columns are fully loaded, the auger turns off automatically.
 The inner and outer walls of the columns are made in the form of sieves with appropriate perforation, which makes it possible to effectively blow the grain layer (36 cm), maintaining the temperature set by the operator.
 In the lower part of the dryer there are dosing rollers, the speed of rotation of which regulates the time the grain stays in the columns. This is what ensures certain drying modes. Dosing rollers feed the dried grain to the lower unloading auger, which in turn transports the grain to the consumer or to storage.
CONSTRUCTIVE PERFORMANCE
1. External and internalgrain sieve columns are made of high-quality galvanized steel S355 or stainless steel 1.2 mm thick with perforations of 1.2 mm (for rape) 2.5 mm (forcorn).
2. The supporting chassis is made of a single frame.
3. The galvanized casing of the burner and fan protects the grain dryer from corrosion.
4. Effective heating system: external chamber with a length of 1500 mm. provides a stable supply of air to the burner, which is located in an internal chamber with a length of 1000 mm.
5. Increased productivity due to an increase in the diameter of the lower burner chamber to 1000 mm.
6. Effective gas burners of our own production made of heat-resistant stainless steel brand 310 (chrome) with a thickness of 2 mm (1300 C) contribute to saving gas with high efficiency. A reliable electronic system of ignition and flame control of the burner ensures stable operation of the burner in two-stage mode. The use of burners of this type allows you to save up to 20 percent of gas consumption.(//tractor-service.com)
7. The use of a highly efficient fan and burner combined in one housing ensures optimal air heating. Allgrain dryers are equipped with aluminum fan blades (Multi-Wing brand, manufactured in Denmark).
8. Reinforced fastening of the auger made of ductile cast iron with a kestamide sleeve ensures reliable fixation of the auger and minimal friction in the sliding bearings.
9. The thickness of the screw is 5 mm. provides a longer service life.
10. Dosing rollers are made of hot-drawn aluminum, which is resistant to impacts and breakage.
11. The burner processor – Siemens LCA 52 is located in the control panel.

MANAGEMENT AND SECURITY SYSTEM
1. NEODRY grain dryers are equipped with a manual and automated control and safety system, which allows you to monitor all parameters of the equipment.
2. Measurement of the temperature of the grain and the drying agent is carried out in each grain column, which makes it possible to reliably obtain information about the drying process. Grain temperature sensors, located inside the grain columns, pass along the entire length of the perforated body of the dryer, which allows you to control the uniformity of grain heating.
3. Using the LCD display, the operator can monitor and adjust all performance indicators of the grain dryer. Also, the system monitors the presence of burner flames, monitors the operation of the upper and lower screws, automatically maintaining the specified humidity of the final product.
4. Electromagnetic valves of the brand BÜRKERT (Germany).
5. Manual valves of the brand KROMSCHRODER (Germany).
6. A fully automated multi-level security system ensures reliable protection of all equipment nodes in any emergency situations.
7. The control pool is equipped with TELEMECANİQUE brand elements (France).
8. Automatic switches of the SIEMENS brand will provide reliable protection of all grain dryer systems in any unforeseen situations.
