VEGA-6 Pros, Dnipropetrovsk region.

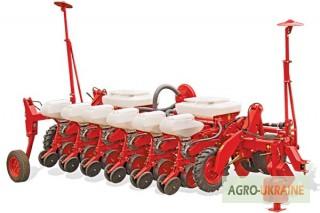

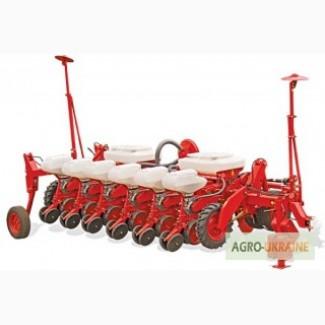

VEGA 6 PROFI universal pneumatic seeder

VEGA PROFI – universal semi-trailer pneumatic seed drills, intended forprecise sowing calibrated seeds of corn,sunflower, castor, sorghum, soybeans, as well as seeds of fodder beans, beans, lupins
- with their embedment in the soil with a two-disc coulter;
– with simultaneous, separate from seeds, application of granular mineral fertilizers;
- by rolling the soil in rows.

It is also possible to sow uncalibrated seeds, but in this case the accuracy will directly depend on the difference in size and the degree of damage of the seed material.

VEGA PROFI is a planter that perfectly meets the goals of modern agriculture with maximum productivity at minimal costs.

VEGA PROFI, due to its design and technical characteristics, are reliable in operation, easy to set up and ensure high-quality and accurate sowing of plowed crop seeds.

The accuracy of sowing seeds with VEGA PROFI seeders is ensured by the design of the PROFI seeding device.

The seeder is equipped with a centrifugal fan with a drive from the PTOtractor 540 rpm.

For guaranteed retention of heavy leguminous seeds (soy, etc.) on the holes of the seeding discs, the fan of the seeder is equipped with additional air ducts.

There is a flap on the fan to regulate the vacuum of the air flow.

The fan is equipped with an overrunning clutch that protects the belt transmission from increased wear.

The chain mechanism for switching gears of seed sowing devices has 15 transmission ratios.
(//tractor-service.com)
The gear mechanism for switching gears on fat-screening devices has 12 transmission ratios.

Control of sowing parameters is provided by the "FACT" information device installed on the seeder:
- seed rate;
- movement speed of the seeder;
- percentage of doubles;
- distribution of seeds along the row;
- percentage of passes.

Control during the seeding process makes it possible to promptly correct emerging deviations and guarantees accurate seeding.

Type of semi-trailer machine
Gripping width, m 4.2
Number of rows, pcs. 6
Width between rows, mm 700
Working speed *, km/h 2.5-9
Productivity *, ha/time 1.04-3.78
Total capacity of seed bunkers, dm³ 312
Total capacity of bunkers for fertilizer, dm³ 340
Seed sowing rates (calculated), units/p.m. 1.3-53
Fertilized seeding rates (calculated), kg/ha 23-514
Seed embedment depth, mm 40-100
Overall dimensions in working position, mm 2400x7169x1700
Overall dimensions in transport position, mm 7000x2670x2025
Mass (dry), kg 3140
It is aggregated with tractors with a capacity of not less than hp. 80
