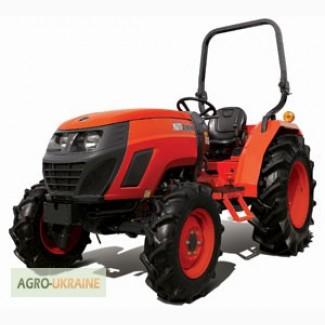

Minitractor Kioti DS 4510, Kherson region.

Technical characteristics of the tractorKioti DS 4510
Kioti tractor modelDS 4510 DS 4510
Engine type 4A220LWM, vertical, 4-cylinder 4-stroke diesel with forced liquid cooling
Engine power 45 hp.
Engine volume 2197 cm3
Heating of the glow plug system +
The volume of the fuel tank is 45 l.
Wheel formula 4x4
Rear differential lock +
Brake system Hydraulic
Disconnection of the front bridge is mechanical.
Type of gearbox Mechanical
Gearbox 8/8
Clutch dry, single disc(//tractor-service.com)
Power steering +
Front PTO, speed = engine revolutions
PTO shaft revolutions 540 rpm
Productivity of the hydraulic pump is 49.9 l/min.
The maximum load capacity of the hinged mechanism is 1100 kg.
Theoretical forward speed 1.75-21.14 km/h
Theoretical speed of backward movement 1.75-24.14 km/hour
The size of the fronttyres 8.0x16/6
The size of the rear tires is 13.6x26/6
Minimum ground clearance 367 mm
Wheel base 1850 mm
Overall dimensions, (LxWxH) 3135x1765x2580 mm
The minimum turning radius (with the brake pressed) is 3.0 m
Structural weight 1605 kg
