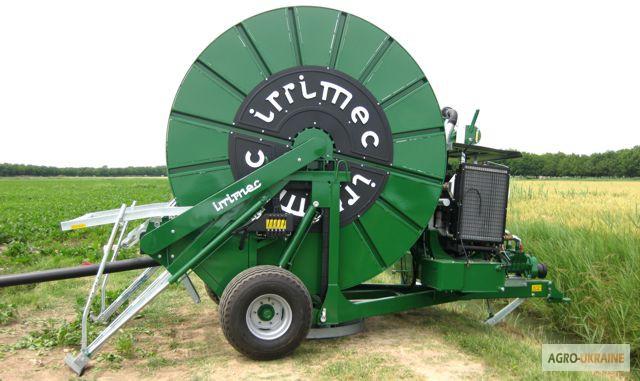

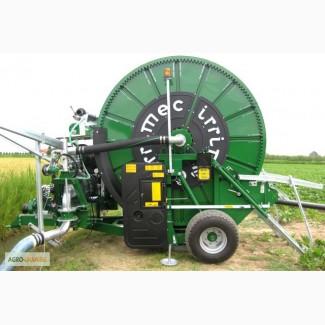

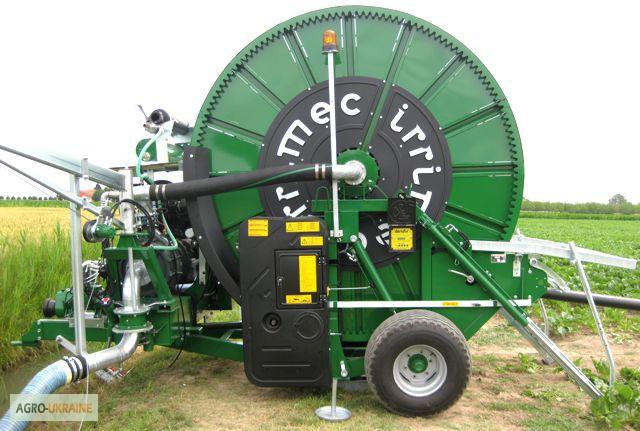

Motor pump with drum Irrimec AP Master MF3-MP for irrigation, Kyiv region.

Technical characteristics:
· the turbine of the patented "Turbimec" system is replaceable for flows from 10 to 130 m³/hour;
· sandblasted surface covered with epoxy anti-corrosion primer;
· the top layer is covered with polyurethane paint (with a low amount of solvents before final processing in the oven);
· a model with a galvanized platform resting on the ground, rotating 360°;
· polyethylene hose PE 80;
· a hydraulic system that functions with racks, a jack,wheels, rotation and lifting of a rotary trolley;
· double main mechanism of the twisting system.

Standard equipment:
· engine IVECO F32 MNSA.01 83 HP with Caprari pump MEC MG 80/A;
· symmetric 3-wheel trolley - fixed body and weight; 150
· стандартный спринклер с соплами;
· 4 meter rubber hose with couplings;
· vibration-resistant manometer (glycerine-filled);
· broaching speed indicator;(//tractor-service.com)
· lever for winding the hose;
· bigwheels 400 x 15.5;
· operating instructions and a list of spare parts.

Ø PET (mm): 90
Length PET (mt.): 460
Ø PET (mm): 100
Longueur PET (mt.): 450 - 470 - 530 - 630
Ø PET (mm): 110
Longueur PET (mt.): 350 - 400 - 420 - 440 - 500 - 550 - 600
Ø PET (mm): 120
Longueur PET (mt.): 400 - 470
Ø PET (mm): 125
Longueur PET (mt.): 350 - 370 - 420 - 450
Ø PET (mm): 135
Longueur PET (mt.): 350 - 380
