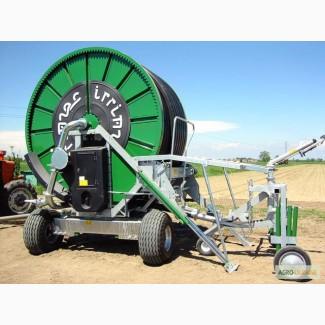

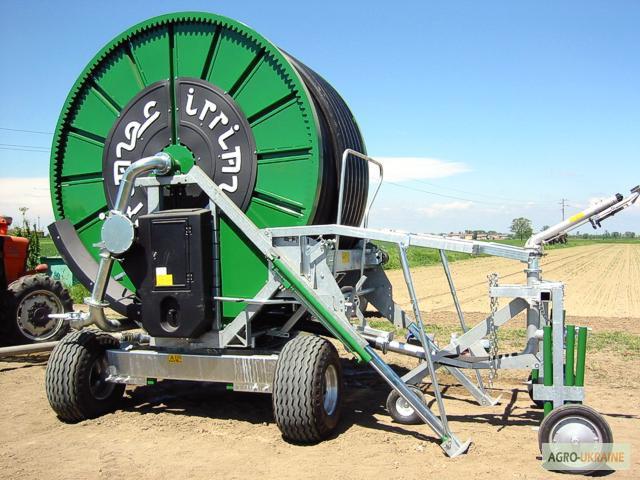

Drum for IrrimecAP Opti-rain ST7 motor pumps for irrigation, Kyiv region.

Technical characteristics of the drum formotor pumps:
· turbine of the patented "Turbimec" system, replaceable for flows from 10 to 130 m³/hour;
· sandblasted surface covered with epoxy anti-corrosion primer;
· the upper layer is covered with polyurethane paint with a low amount of solvents before the final processing in the oven;
· a range of 6 winding speeds;
· polyethylene hose PE 80;
· mobile towers and adjustable wheelbase.

Standard equipment:
· manual hydraulic jack, for lifting the trolley and stabilizer anchor on the racks;
·wheels 11.5/80 -15.3 12 PR;
· 3-wheel trolley, adjustable wheelbase;
· standard sprinkler with nozzles;
· 4 meter rubber hose with couplings;(//tractor-service.com)
· vibration-resistant (glycerine-filled) pressure gauge;
· broaching speed indicator;
· lever for winding the hose;
· operating instructions and a list of spare parts.

Ø PET (mm): 100
Longueur PET (mt.): 530 - 600
Ø PET (mm): 110
Longueur PET (mt.): 480 - 500
Ø PET (mm): 120
Longueur PET (mt.): 400 - 420
Ø PET (mm): 125
Longueur PET (mt.): 350 - 380
Ø PET (mm): 135
Longueur PET (mt.): 350
