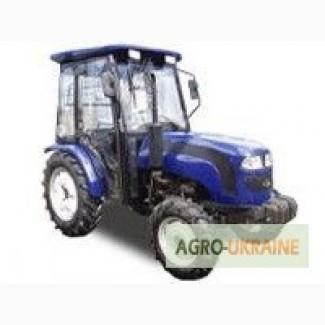

Mini tractor DW 354 (DV 354), Nikolaevskaya reg.

Powerful multifunctional tractor DW 354 is perfect for carrying out various works in agriculture, summer cottage, garden, garden plot. A cabin with heating will provide maximum comfort when working in the cold season and during rain. The DW 354 tractor is equipped with a vertically arranged 4-cylinder water-cooled diesel engine with a capacity of 35 hp. All-wheel drive, differential lock, power steering
Technical characteristics of the mini tractor DW 354 (DV 354):
Engine power: 35 hp.
Wheel formula: 4x4
Engine type: vertical, 4-cylinder 4-stroke diesel with water cooling and safety injection.
Engine start: electric starter with direct drive and safe start.
Engine volume: 2156 cm3
Cylinder diameter/piston stroke: 85х95
Nominal engine fuel costs: ?251
Typefuel pump: plunger, row
Nominal revolutions of the crankshaft of the engine: 2350 min-1
Nominal traction force: 6.2 kN
Engine oil type: mineral or semi-synthetic for diesel engines
Nominal consumption of fuel oil in the engine: ? 2.72 g/kW*hour
Type of oil in the gearbox, rear/front axle: mineral for diesel engines/transmission
Rear differential lock: есть
Clutch: dry, two-disc.
Power steering: есть
Cooling system fan drive: V-belt transmission
Brake mechanism: mechanical, drum type(//tractor-service.com)
Power take-off shaft revolutions: 540/720 rpm, rear
Type of hydraulic system pump: gear pump
The maximum load capacity of the hinged mechanism: 500 kg
Minimum clearance: 240 mm
Wheel base: 1800 mm
Rear trackwheels: 1170 m
Track of the front wheels: 1150-1300 m
Size of reartires: 11.2x24
The size of the front tires: 6.5x16
Minimum turning radius: 3.2/2.3 m
Theoretical forward speed: 2.1-31.97 km/h
Theoretical reverse speed: 2.72-12.76 km/h
Fuel tank volume: 21 l
Engine crankcase volume: 3.5 l
The volume of the gear case and rear/front axle: 11.5 l
Volume of the engine cooling system: 5 l
Hoist body volume: 9 l
Overall dimensions (LxWxH): 3.20x1.46x2.00 m
Structural weight: 1230 kg.
Воздушный компрессор: есть
