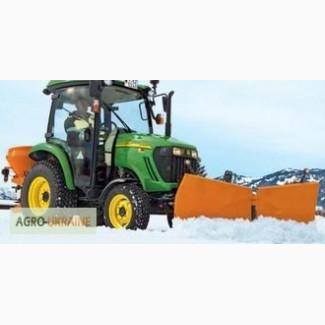

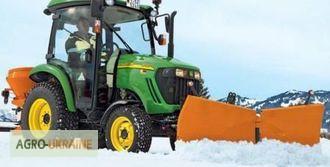

Mini tractor John Deere model 3720, Nikolaev region.

Model
3720
Engine
Ynmar
Type
diesel
Number of cylinders
3
Engine volume, cm3
1500
Nominal engine power, kW (hp) at rpm (ECE-R24)
32.4 (43.4) @ 2500
Torque Nm at rpm
114 @ 2500
Fuel consumption (at 100% load), l/h
10.6
Fuel capacity tank, l
51.1
Transmission

Transmission
eHydro
Transport speed, km/h
0 - 30.6
Hydraulic system

Working pressure, bar
172
Productivityhydraulic pump, l/min
32.6
Hinged device(//tractor-service.com)

Rear hitch category
1
The maximum load capacity of the hitch on standard hooks, kg
1149.0
Power take-off shaft

Type
independent
Nominal power on the rear PTO, kW(hp)
26 (35)
Rotation frequency on the rear PTO, rpm
540
Rotational frequency on the average PTO (option), rpm
2100
Габаритные размеры

Wheel base. mm
1700
Length (with reference), mm
3000
Width, mm
1500
Height (with cabin), mm
2257
Ground clearance, mm
297
Turning radius, m
9.2
Own mass, kg
1619
