Sleif harrow tooth BSHN-14, BSHN-17, BSHN-21 Solomiya, Dnepropetrovsk region.

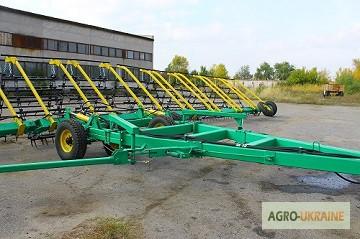

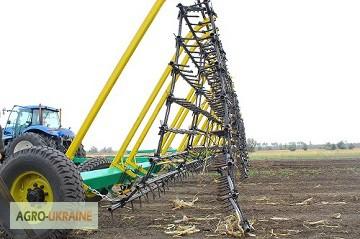

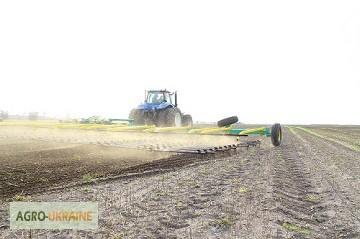

Sleif-tooth harrow BSHN-14, BSHN-17, BSHN-21
The work of the harrow is intended for works such as early spring:
- preservation of moisture, crushing of clods, leveling of the field surface, distribution of remains that have not rotted after winter;
- acceleration of drying of the top layer of soil (5 cm), for the possibility of carrying out earlier sowing without weathering of moisture;
- laying of mineral fertilizers and soil herbicides;
- provoking the germination of weed seeds, and destroying their seedlings during further processing.
Summer period, grain harvesting:
- provoking the germination of weed seeds by shallow processing of stubble after harvesting (instead of peeling, when the soil is not overdried)
- uniform distribution of harvest residues on the surface of the field, mulching to accumulate a large amount of moisture and retain it in the soil. Prevention of water and wind soil erosion .
Autumn period:
- provoking the germination of weed seeds, and destroying their seedlings during further processing;
- crushing of clods, leveling of the field surface, distribution of plant residues for high-quality sowing of winter crops;
- laying of mineral fertilizers and soil herbicides.

TECHNICAL DATA
Name of the indicator
Unit of measurement Value
Name of indicators Unit of measurement BSHN value -21 BSHN value -17 BSHN value -14
Machine type Semi-trailer Semi-trailer Semi-trailer
1. Productivity in 1 hour. Ha/h 16.8 – 21 13.6 -17 11.2 – 14
2. Construction width of capture, m 21 17 14
3. Working speed Km/h 8-10 8-10 8-10(//tractor-service.com)
4. Processing depth See 8 8 8
5. Overall dimensions

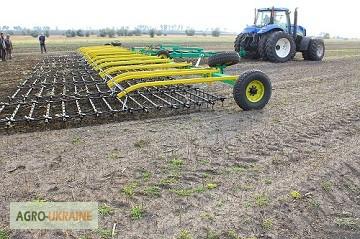

In working position:
width
length

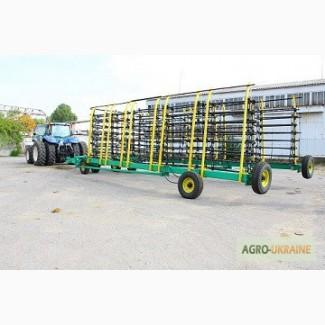

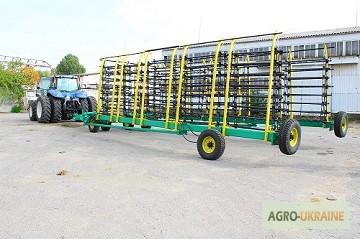

in transport position:
width
height mm 21000
11500
4400+/-50
3370 17000
11500
4400+/-50
3370 14000
11500
4400+/-50
3370

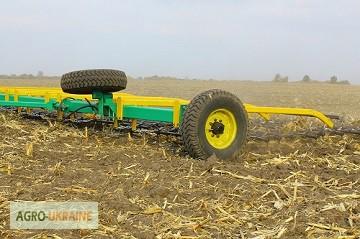

6. Quantitywheels pcs 8 8 8
7. Number of sections of working bodies pcs 24 20 16

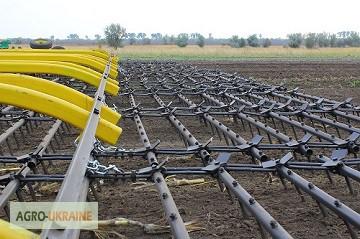

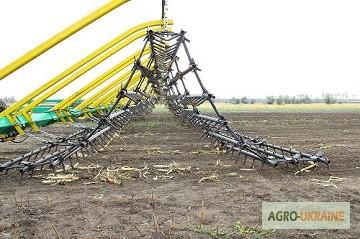

8. number of harrow teeth pcs 1440 1184 960
9. Working pressure in the hydraulic system mPa (kgf/cm³) 18/180 18/180 18/180
10. The number of hydraulic cylinders pcs. 4 4 4
11. Aggregated by 300-320 hp tractors. 240-280k.s 150-240k.s.
