SUPN planter in Kirovohrad, precision seeding device, Kirovohrad region.

Продается сейалка новая SUPN-8.
The prices are lower than the market prices. Delivery is free. Warranty 12 months. Direct deliveries without markup and intermediaries.
Ukraine, Kirovohrad.

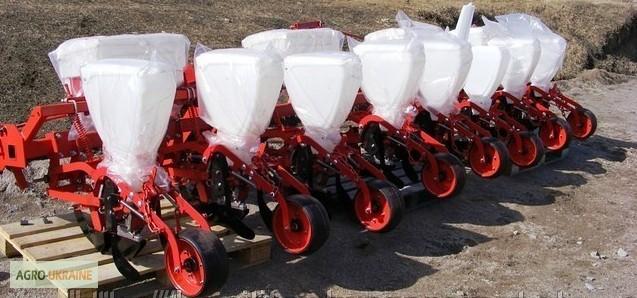

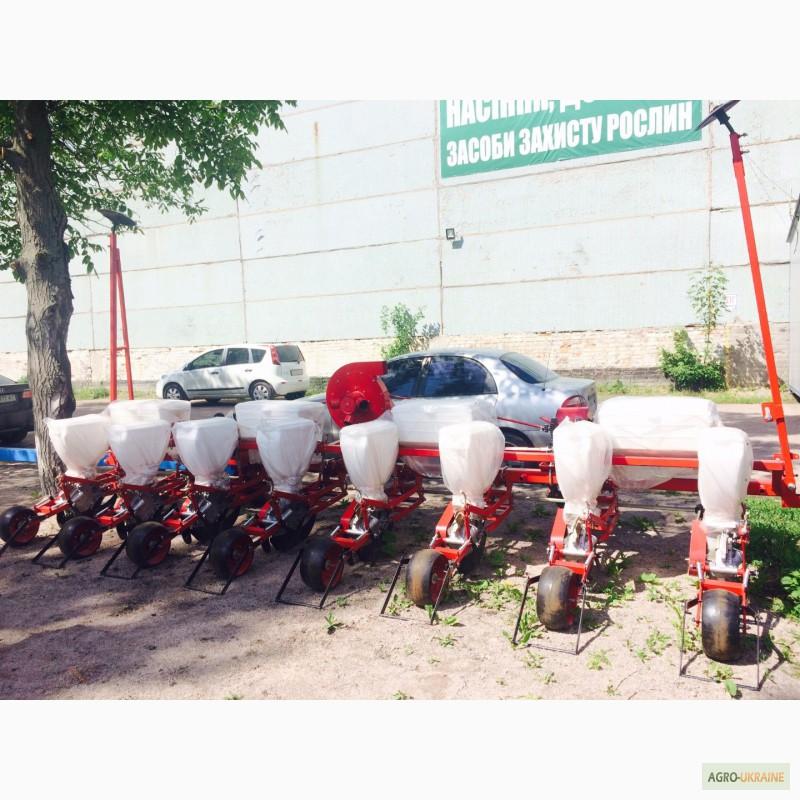

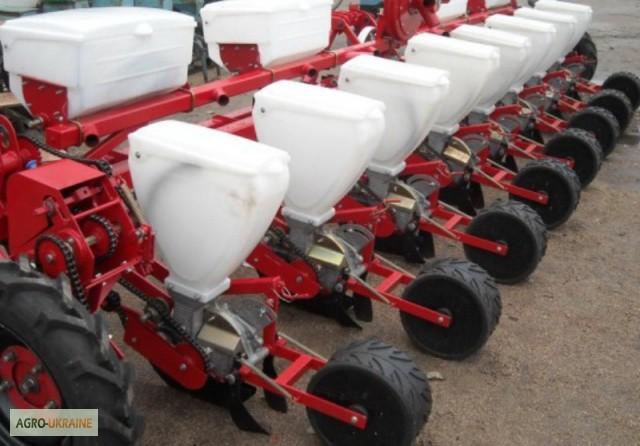

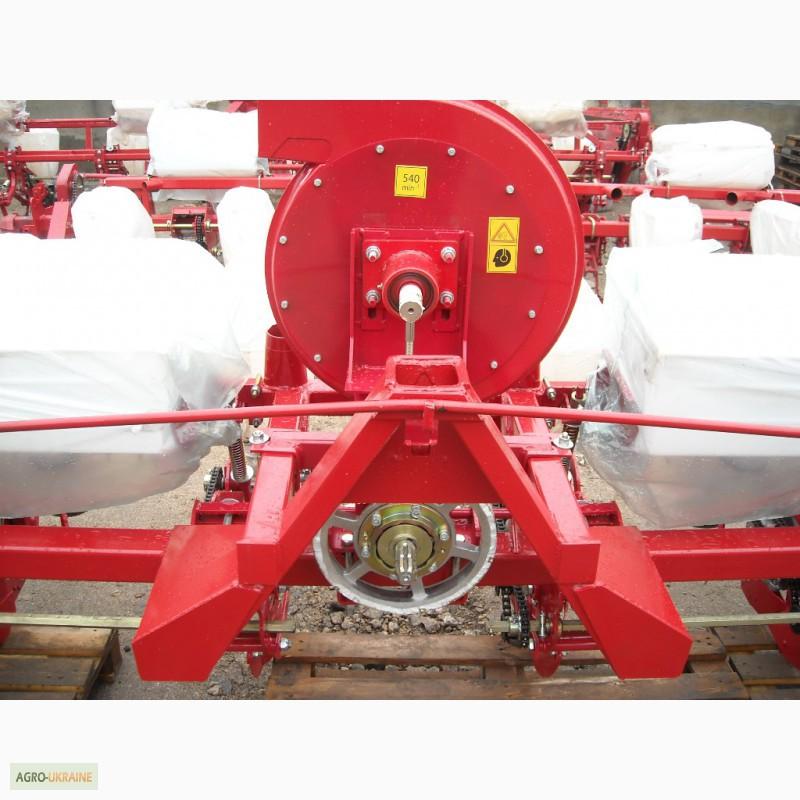

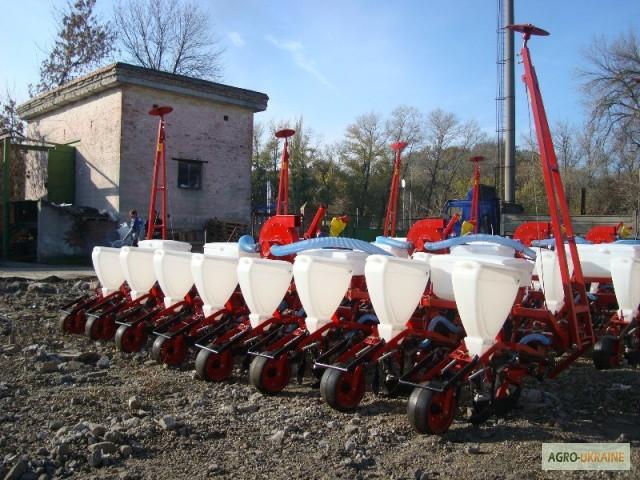

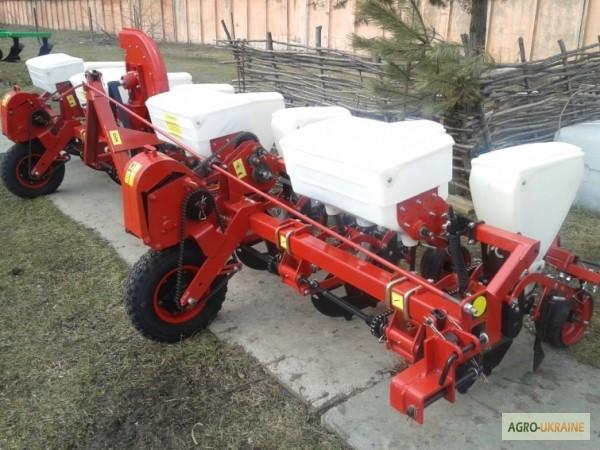

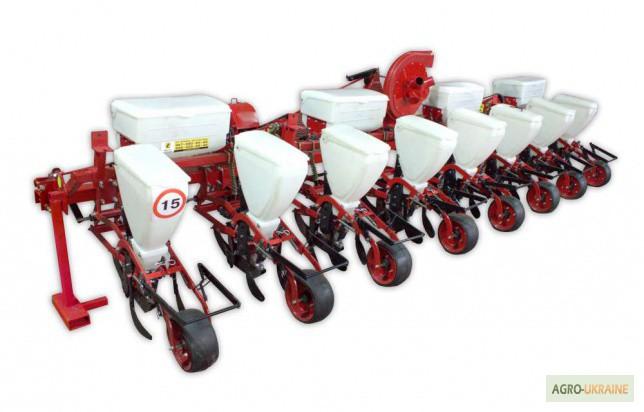

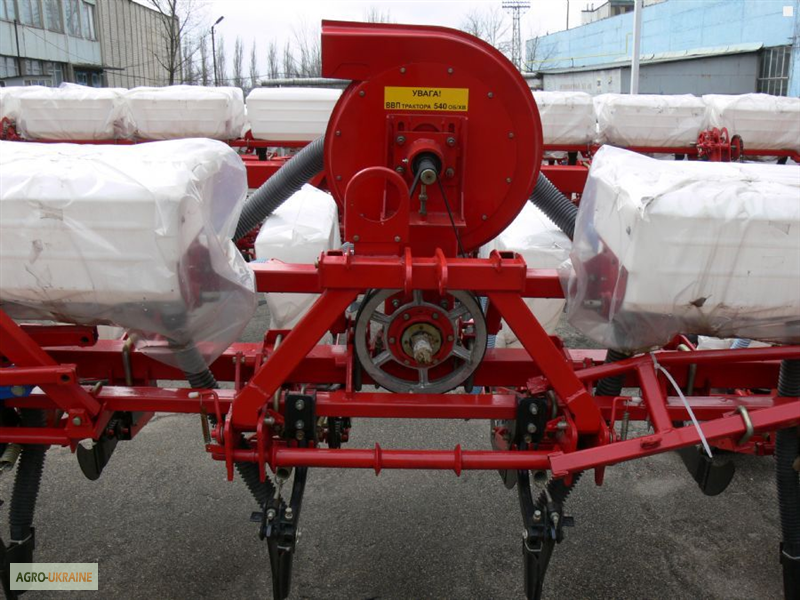

The SUPN-8 seeder is intended for dotted sowing of calibrated and uncalibrated seeds of corn, sunflower, castor and sorghum with simultaneous, separate from the seeds, application of mineral fertilizers. the frame of the seeder, which rests on two support-drive wheelswheels, the drive mechanisms of the seed sowing and fat sowing devices, a centrifugal fan with a hydraulic drive, eight sowing sections, four plate-scraper fat sowing devices, footrests for servicing the seeder, two disc markers, devices for monitoring the sowing and seed level in the bunkers are attached. The section of working bodies consists of a suspension mechanism of the parallelogram type, a track-shaped combined coulter 1, a pneumatic seeding device with a perforated sowing disc 5, a mechanism for adjusting the deepening of the coulter 7, consisting of a curtain and a quick-removable pin, wrappers 8,roller 9, a loop 10 and hopper for seeds 12.
Brief technical characteristics of SUPN-8:
- grip width, m................................................... 5.6
- working speed, km / h (m / s) ........................up to 12 (3.3)(//tractor-service.com)
- row width, cm............................................ 70
- seed embedment depth, cm.....................:...........4.0-12.0
- predely norms of seed sowing, thousand pcs. / ha............25-150
- predely seeded fertilized, kg / ha......................... 50-250

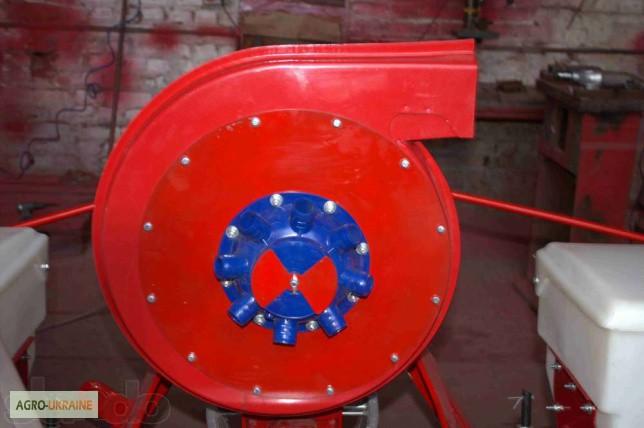

- the fan creates rarefied, mm of water. st........ 320±20 MPa................ 0.0032

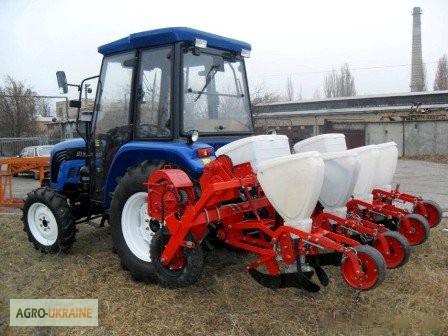

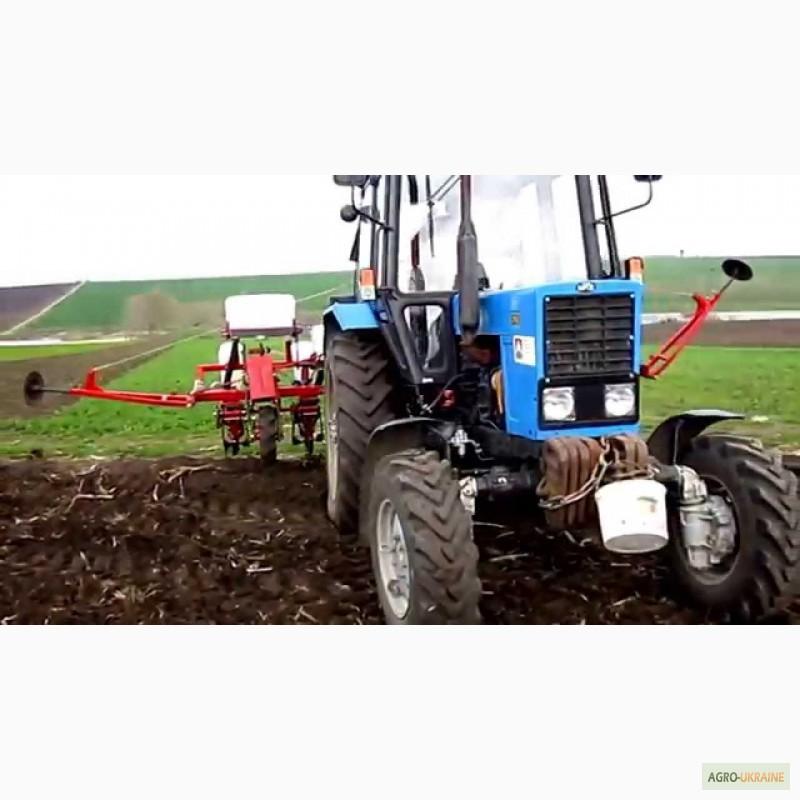

- is aggregated with traction class tractors........... 1.4

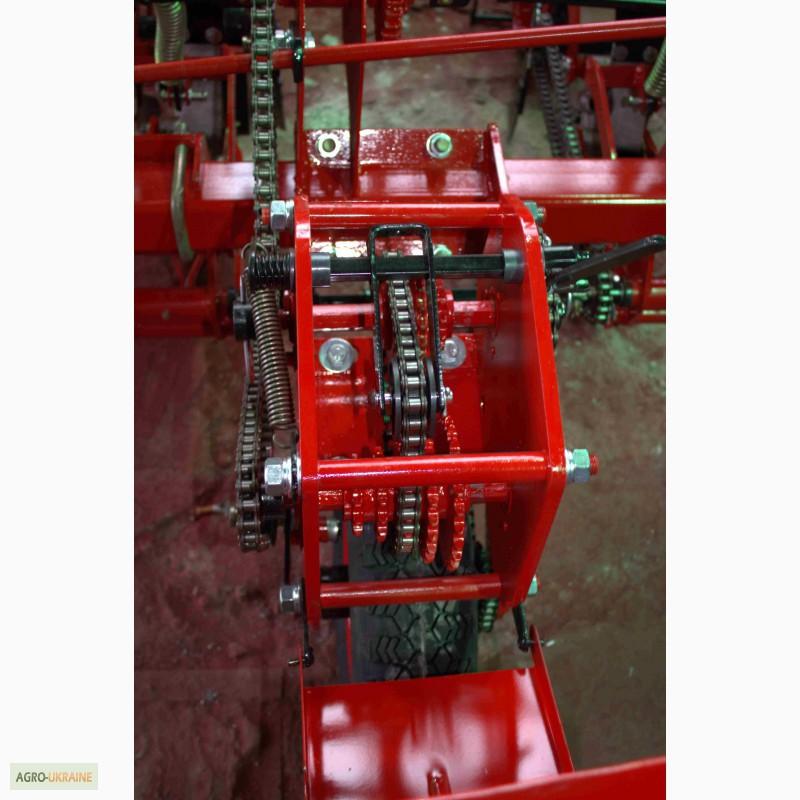

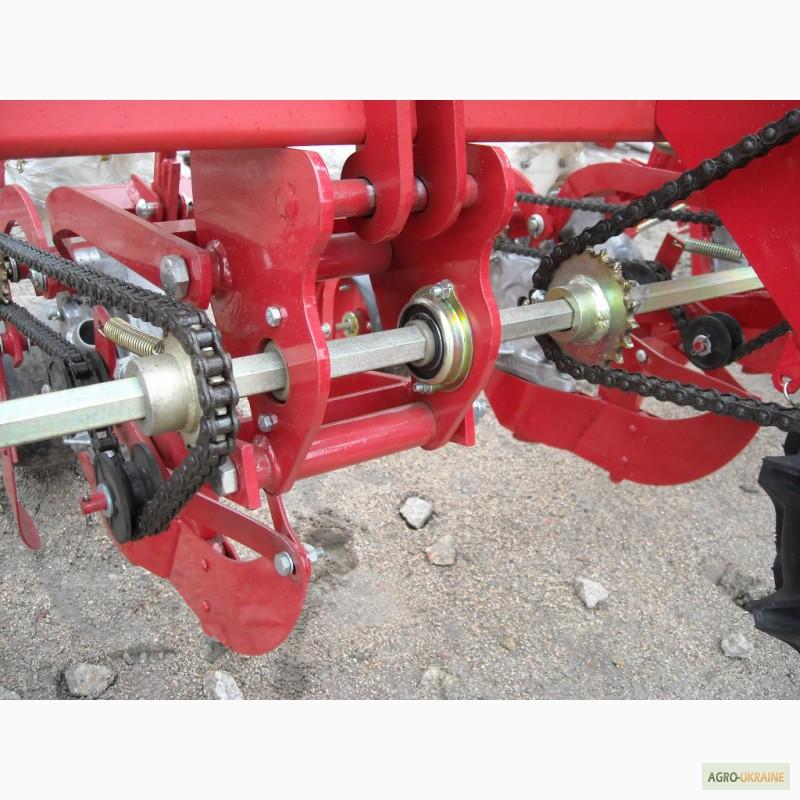

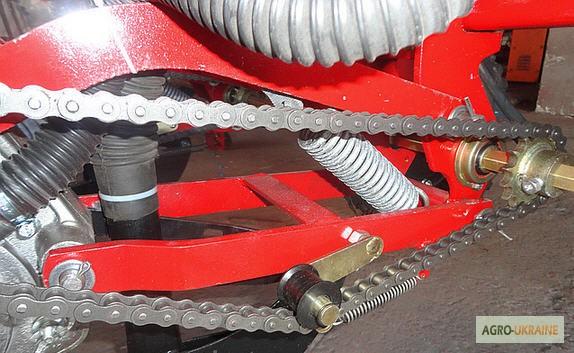

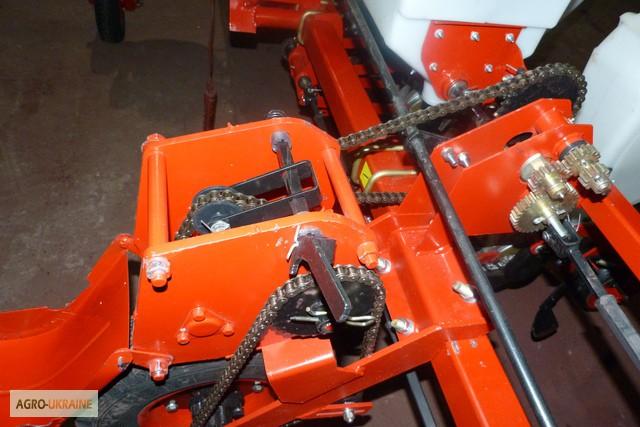

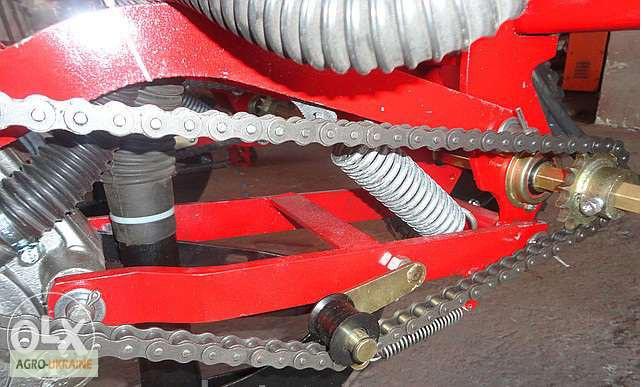

Principle of operation: By means of the transmission mechanism from the supporting and driving wheels, the rotation of the seed-seeding discs and augers of the fat-seeding apparatus is carried out. With the help of a vacuum, the seeds are sucked to the holes of the rotating disc located in the discharge zone and transported from the intake chamber to the discharge zone. The removal of excess seeds that have been sucked into the holes back into the intake chamber is carried out by the discharge fork. The coulter makes a furrow, first lays the fat, they are sprinkled with earth, and then, in the furrow, the seeds fall so that there is no contact between the seeds and the fat. The wrappers close the furrow, the rolling wheel compacts the soil, creating contact between the seeds and the soil and conditions for them to absorb moisture, and the plume levels the surface of the field and creates a mulched soil layer.
Having bought a SUPN-8 planter, you will receive a reliable and easy-to-use unit that is easy to set up and control. It can work in almost all climatic zones, except areas of mountain agriculture. Buy a seeder and you will find an irreplaceable assistant!
