Claas GPS Copilot S7 navigator, Poltava region.

The basis for accurate control.

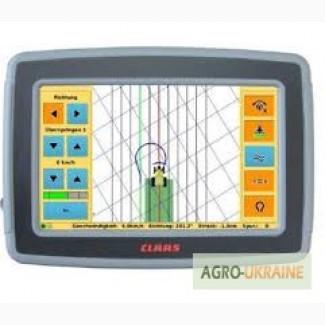

The S7 basic terminal is a high-tech system that is used exclusively for controlling theparallel driving system or automatic steering. The S7 terminal, equipped with a 7-inch high-resolution touch screen, performs all the functions of its predecessor, the S3. In addition, the set includes a reference line management function and a USB interface for data management, as well as for fast data exchange with the AGROCOM NET and AGROCOM MAP software packages.

In the basic configuration, the S7 terminal works with the correcting EGNOS signal, additionally OMNISTAR, BASELINE HD or RTK signals are also provided. It is also possible to activate reception of satellite signals from the GLONASS system. When changing the correcting signal, it is no longer necessary to rearrange the antenna, since a dual-frequency receiver for various signals is built into the S7 terminal at the factory.

Data exchange between machines and the office.

Due to the amount of required documentation, analysis of the results takes more and more time. Thanks to the S10 and S7 terminals, as well as the agricultural management software AGROCOM NET and AGROCOM MAP, this time is reduced to a few clicks of the mouse. The data registered during operation is exported from the terminal to a USB drive and then imported into the software. Do you want to set a baseline for other cars for parallel traffic on the site? With the help of data export and import via a USB drive, this can also be easily done directly on site.

Technical characteristics:

Plastic dust/moisture/shock resistant case
Large touch 7" color display
Simple, intuitive interface
Easy to configure - "install and work"
It is installed on any equipment (including MTZ, KhTZ, etc.)
Menu in Russian and Ukrainian.
On-screen display of the movement track showing gaps/overlaps
Calculation of the treated area
Opportunity to work at:
free signals - accuracy +/- 15 cm
paid signals - accuracy +/- 5-10 cm
with a base station - accuracy up to +/- 4-6 cm
Large storage capacity for data recording
Ability to import and export prepared data
The presence of a USB connector
The latest work manager, which allows you to maintain a database of farms, fields, crops, operators, etc. (link to screenshot)
Scaling of the image on the touch screen
The possibility of connecting the autopilot
The possibility of connecting a rover antenna
Availability of an operating system
Work at night and in poor visibility.

Management modes

Mode A-B

Mode A-B.
The track is determined by given points.
A and B. Other tracks are laid on
distance from the first track, 175
соразмерном заданной ширине захвата.
In this way, the breakdown is ensured.
of the plot into beds and their succession
processing.
Contour mode(//tractor-service.com)

Contour mode.
Driving along contour lines, as
rule used for processing
edges of the field or finishing slightly
curved boundaries of the site

Contour mode A-B

Contour mode A-B.
Contour mode of movement from point
A to point B can, for example,
be used to display
reference line on a slightly curved one.
edge of the plot. Tracks for the future.
processing is calculated by
parallel displacement of the reference line
on the specified width of capture. Thus
by the way, the plot is divided into beds,
which can be processed in any
sequences

Adaptive contour mode A-B.
Adaptive contour mode of movement
from point A to point B allows detours
obstacles by means of recording a new one
section This section is added to
the existing circuit A-B and, thus
image, available for the second section.
In addition, the already existing track in
the end can be increased by one section
Angular mode A+

Angular mode A+
(transfer of the supporting track).
In this mode of movement, it is possible
to agree between directions
movements of several cars at
parallel processing. Based on
of the given point A and the value of the angle
of the turn of the second car is determined by
point B is adapted to the support track.

Circular mode

Circular mode.
Circular driving is used d
