Universal trailed spreader pomot 7.0 t, Khmelnytskyi region.

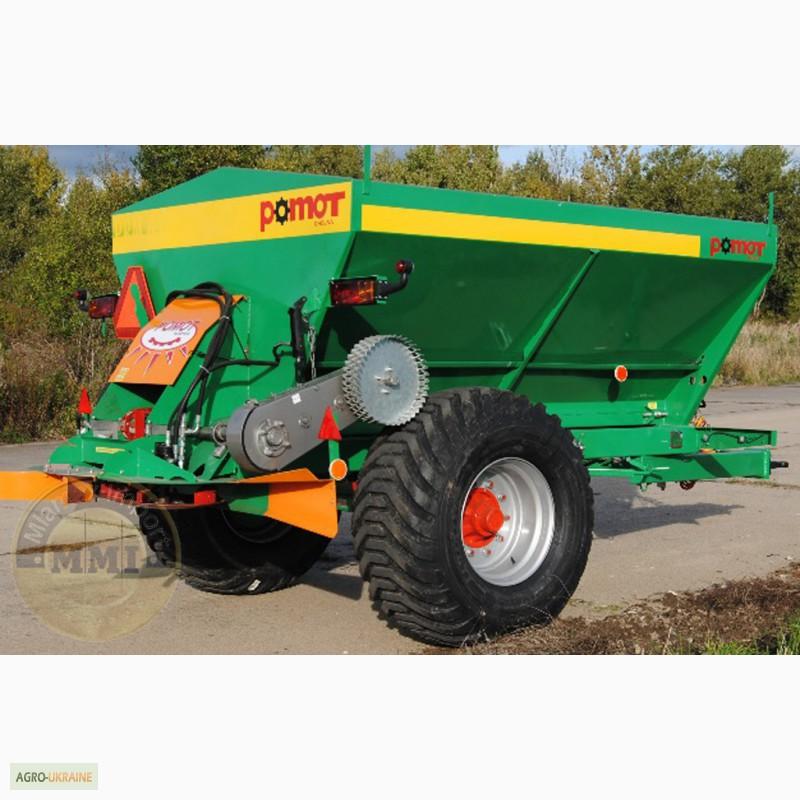

UNIVERSAL trailed spreader POMOT 7.0 t
• chain conveyor with a width of 730 mm.

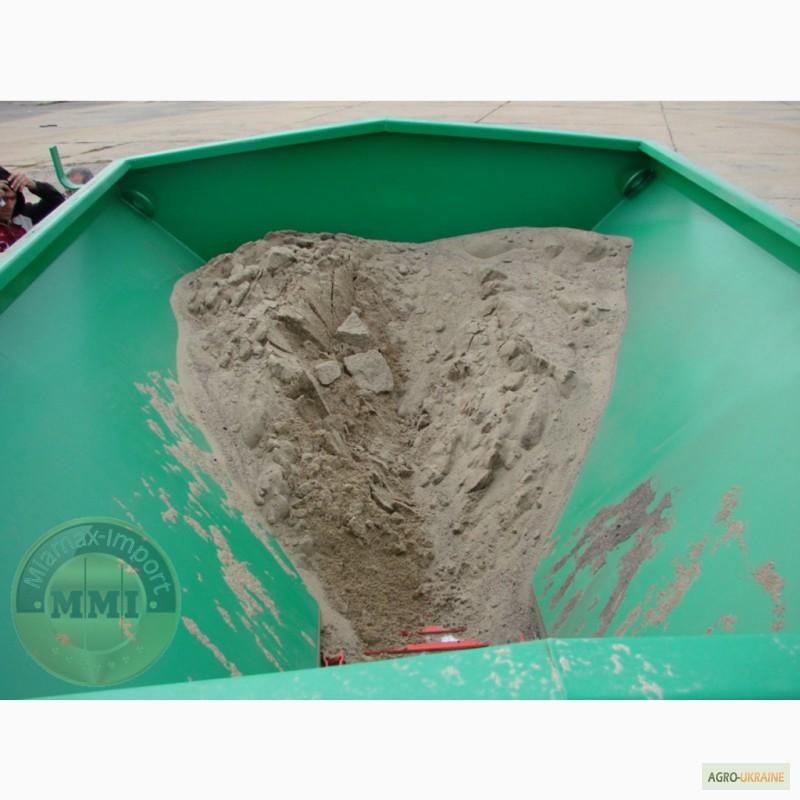

• Tank with a capacity of 6,000 liters, max. load capacity up to 7 tons.
• The tank is made of a 700mm optim metal sheet with a yield strength of 700n/mm2, which is very resistant to abrasion and mechanical damage.
• Lacquered tank (possibility of coating with polyurethane mass).
• The tank is located on a frame made of a RUUKKI profile and transverse reinforcing profiles.
• Chain floor conveyor with a width of 730 mm.
• Mechanical chain rope drive fromwheels.
• Three-speed gearbox, which regulates the speed of the chain rope and the required dose of fertilizer supply (depending on the engaged gear).
• Two scattering discs made of special metal sheet raex 400.
• The blades of the spreading discs are covered with a mass that ensures adhesion of manure to thediscs, guaranteeing the appropriate accuracy of spreading and prolonging the service life of the spreading disc.
• Regulated blades providing the required spreading width.
• Mechanically opening dump valve with an opening range from 0 mm to 300 mm with an accuracy of up to 2 mm according to 150 grade/alloyed steel.
• independent, hydraulic drive of spreading disks, the range of revolutions from 10 to 1127 revolutions per minute.
• Control of the speed of revolutions of spreading discs with the help of a hydraulic-mechanical valve.
• The possibility of individual control of the speed of the right and left spreading plate through individual hydraulic valves.
• Scattering width:
Mineral fertilized from 10 m to 36 meters
Limestone from 2.5 m to 18 m
Secondary substances: from 2.5 m to 40 m
• Uniaxial suspension with tire 550/60 x 22.5
• Mechanically adjustable support leg
• Two-wire pneumatic braking system - with 3-stage regulation of braking force
• Lighting equipment
• Manual brake
• designed for movement at a speed of up to 40 km per hour.
• Spreaders of the POMOT company are built under the license of the TRANSPREAD company
• They are ideally suited for spreading all kinds of materials in agriculture, ensuring high efficiency of work and accuracy of spreading.
• At the same time, old spreaders used in communal households can be replaced.

Technical and operational data:

Размеры:
Length: 2380mm
Width: 2190-2550 mm
Height: 2163-2320mm(//tractor-service.com)

Operating parameters:
Loading box capacity: 5.12m3
Allowable load capacity: 7000 kg
Own weight: 1620 kg
Minimum power requirement
tractor puller: 50 kW
Permissible gross weight: 8620 kg

Hydraulic installation:
The maximum pressure of the hydraulic installation of the tractor: 16 MPa
The minimum efficiency of the hydraulic installation of the tractor: 48 liters per minute.
Type of hydraulic transmission oil: CLASS AGRISHIFT GA12

Tire: 550/60-22.5
400R-22.5
19.5R-22.5
500/50-17
Feeding mechanism and sprinkling pickup:
The width of the tape of the feeding mechanism: 500 mm
Number of pickup disks: 2 pcs.
Pickup disk revolutions: 0-1160 min. - 1

Other information:
Voltage of electrical wiring: 12 volts
Wheel track: 1800-2150 mm
Permissible design speed: 40 km/h.
Permissible vertical load on the hook: 15 kN
The working speed of the diffuser: 4 - 12 km/h.
Scattering width: 36 m
Axle load: 71.2 kN

The sizes of the boot box:
Length: 3000 mm
Width: 2130 mm
Height: 1206 mm
