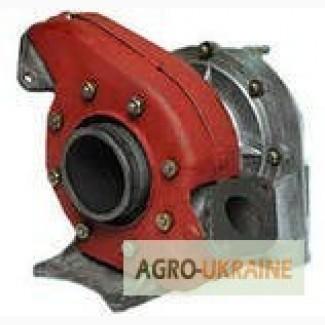

Turbocompressor TKR 11H-1, Kharkiv region.

Application of turbocompressor to tractors T-150G, T-157, T-158, T-150K; harvester "Kolos" SK-6,grain harvesters KSK-4, KSK-100. Engine: SMD-60, SMD-62, SMD-63, SMD-64.

Application of the turbocharger to T-150G, T-157, T-158, T-150K tractors; combine harvester "Kolos" SK-6, grain harvesters KSK-4, KSK-100. Engine: SMD-60, SMD-62, SMD-63, SMD-64.

TKR-11N-1

Catalog designation: 112.30003.00

Engine: SMD-60/-62/-63/-64/-68

Vehicle: T-150G, T-150K, T-157, -158, DT-175S,

combines: "Colossus" SK-5, KSK-4, KSK-100

Mass (kg): 20.5

Turning angle a0: ―

Turning angle b0: -(//tractor-service.com)

Interchangeable analog (BZA): TKR-11N-1

Diameterwheels compressor (mm): 110/65

Diameterturbine wheels (mm): 110/85

Rotational frequency of the rotor shaft (rpm): 60000

The maximum degree of pressure increase: 1.9

Productivity kg/s (m3/h): 0.19

Permissible gas temperature in front of the turbine is Сo without heating.

by time: 650

Adiabatic compressor efficiency (max): 0.72

Effective efficiency of the turbine (mach): 0.74
