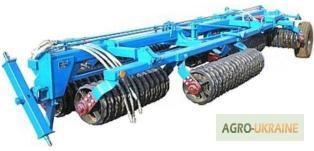

KZK-10P ring-toothed roller, Dnepropetrovsk region.

KZK-10P ring-toothed roller skating rink, hydrofed

Ring-tooth roller KZK-10P hydrotreated, Modifications of the roller :
Ring-tooth roller KZK-10P Ring F460, cast iron, base 3609
Ring-tooth roller KZK-10P-01 Ring F360, cast iron, base 3609 Ring-tooth roller KZK-10P-02 Ring F520, cast iron, base 3609 The distinctive feature of the roller is the use of a wedge-shaped KZK ring of increased diameter F520 with freely moving intermediate rings toothed KZK F530, which rotate freely on the bushings installed between the wedge rings, which significantly increases the reliability, durability and maintainability of the roller.
The use of the KZK F520 wedge ring with the KZK F530 toothed rings made it possible to make the rink a highly efficient unit at the expense of:
- elimination of the effect of the "comb" of the earth due to the increase in the diameter of the working bodies;
- more dense rolling of the soil. The weight of the roller is increased by 600 kg compared toroller KZK-10P;(//tractor-service.com)
- more complete grinding of heavy lumps of earth.
Constructive changes aimed at increasing reliability and durability were implemented during the production of the rink:
- adjustment of the axial clearances of the working bodies without disassembling the bearing unit;
-strengthening of the frame in highly loaded nodes;
-increasing the rigidity of the rink structure due to stretching;
- the use of quick-release connections;
`-application of the improved design of the articulated frame unit.
Soil treatment with this roller improves the flow of moisture to the seeds, reduces its evaporation, improves the contact of the seeds with the soil and accelerates their germination, which leads to the optimal appearance of seedlings and sustainable development of the crop.
Working width of 10 m, weight 5750 kg, aggregated with class 3 tractors.
