Tomato press TSHM-2, Kyiv

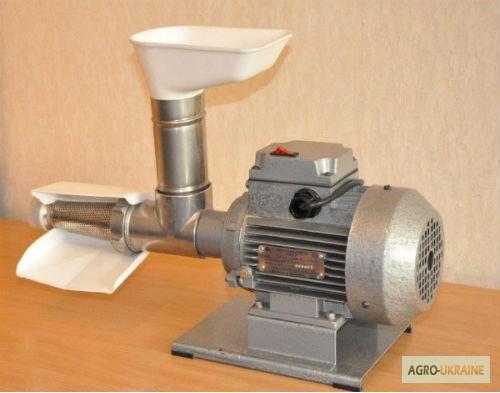

The design of the TSHM-2 press allows you to get juice with pulp from berries (grapes, cherries,apricots, strawberries, raspberries, etc. n.) and tomatoes and apples.grapes must be cut off the berries beforehand. And if necessary, cut the apples into 4 parts. Remove the stone from the stone fruits. Method of use: The press consists of an electric drive 1, a body 6, a conical mesh 8, an auger 16, a loading hopper 3. Grapes are poured into the loading hopper 3, and with the help of a pusher (supplied in the kit) it is sent to the auger 16. The auger is transported to the housing 6 and then to the conical mesh 8, where the juice is pressed. The cake is separated with the help of a cone, which is regulated by the nut 10. The pressed cake comes out through the gap between the conical mesh 8 and the adjusting cone. For the convenience of collecting juice, there is a tray 9, which is placed on the grid 8. The press is easy to use and does not require special skills when setting it up.
Power, W 400 Weight, kg 13 Productivity, kg/hour 60 kg/hour when preparing grape juice. 35 kg/hour when preparing juice from tomatoes. Voltage/frequency, V/Hz 220 Country of manufacture Ukraine Overall dimensions, mm 385*185*540.
