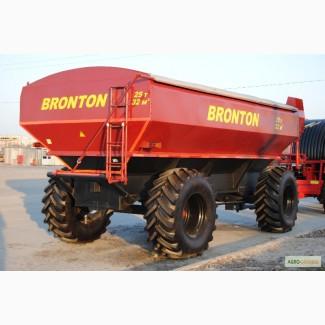

Transshipment bunker "BRONTON", Chernihiv region.

Transshipment hopper is designed for receiving grain from the combine, transporting and unloading grain onto trucks. The use of a hopper-transloader during grain harvesting increases the efficiency ofwork of combine harvesters by 50%. Ideal for a situation when heavy vehicles cannot go to the field, and harvesters have to cover considerable distances.

Transshipment bunkers are used at:
- Three-link harvesting system;
- Grain deliveries and loading to grain trucks and granaries;
- Delivery of seed material and loading of planters (seeding complexes);
- Delivery of granular fertilizers and loading of fertilizer spreaders (planters).

Technical characteristics
BRONTON reloading bunker
Body volume, cubic meters 32
Carrying capacity, t 25
Weight of the bunker in the unloaded state, kg 7800
Weight of the hopper in the loaded state, kg 32800
Sizetire 650.75-R32
(650/55 R26.5,
800/65R32)
Centralized lubrication system
Unloading height, mm 4000
Auger diameter, mm 488(//tractor-service.com)
Unloading time, min. at rotation frequency, rpm 4 / 540
Number of service personnel, people 1 (tractor driver)
Maximum speed of movement, km / h 30
Overall dimensions, mm
Length / Width / Height 9410 / 3380 / 3685
The distance between the axles is 4400
Track width 2700
Clearance 410
Technical features
The auger with a large diameter does not damage the grain.
Polyurethane electrostatic paint, foldingladder.

Additional options:
• Awning
• Pneumatic brake system.
• Tensometry system
• The possibility of manufacturing a hopper with a volume of 40 cubic meters on the basis of a 32-cubic hopper due to the installed reinforced levers and hubs.

Warranty - 12 months. (Post-warranty service is provided).

Thanks to the high quality and moderate prices, our equipment occupies a leading position on the market of Ukraine.
