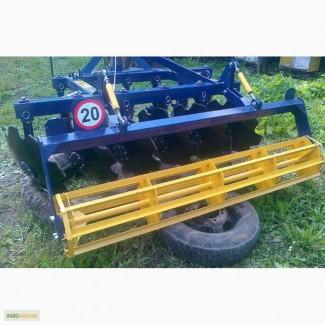

Disk harrow AGD 1, 8 (Agroremmash) Belaya Tserkov, Dnipropetrovsk region.

Disk harrow disc harrow AGD-1.8 Belaya Tserkov. Disc harrow AGD-1.8.Disk harrow AGD 1.8 (Agroremmash) Belaya Tserkov. The working width is 380 mm in diameter. Ribbed roller, assembled from disks and triangles welded to them. The roller shaft is mounted on bearings. The attachment device consists of a traction axle, which is installed in the lower links of the tractor hitch, brackets on the frame with special sockets for fixing the traction axle, as well as a bracket for fixing the central screw of the tractor hitch.
Mechanism of technological process regulation.
The processing depth is regulated by screw ties that hinge the frame with theroller, by changing their length and changing due to this the position of the support roller relative to the frame. The angle of attack of the working discs is regulated using a flange with holes and a locking nut. Uniform deepening of the first and second rows of discs is regulated by the central thrust of the power unit's hinged device.
Width of capture, m -1.8
Productivity, ha/time - 1.6-2.0
Product weight, kg - 650(//tractor-service.com)
Working speed, km/hour - 8-12
Aggregating tractor - YMZ-6L, T40А
Dimensions: length\width\height - 2300\2100\1300
Guaranteed resource, ha - 950
Fuel consumption, l/ha - 5.8-6.2
Delivery is always available in Dnipropetrovsk. Guarantee!.
