Tunnel fan Munters EM50, Poltava region.

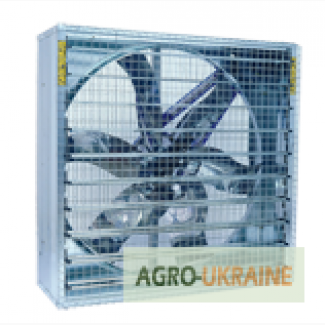

Tunnel fan Munters EM50
EM50 Munters from TD Favorite

End fan for tunnel ventilation Munters EM50

Productivity 42125m3 per hour.
Size 1380*1380mm
Engine power 1.1 kW
Working wheel - stainless steel, 6 blades

Summer ventilation
In hot periods, for cooling and removal of heat emitted by animals inside the building,
a high air exchange rate is required. For this, large fans are needed.
can provide extraction of large volumes of air from the building.

Exhaust fan Euroemme® EM50:
This is an agricultural exhaust fan, which is in the greatest demand in the world.
- Patented centrifugal flap rotation system
of the air valve provides reliable fixing of the valve in
fully open position
- The central hub and pulley of the V-belt transmission are made.
from die-cast aluminum
- Thanks to high aerodynamic characteristics(//tractor-service.com)
low energy consumption is ensured

The fan body is made of durable galvanized sheet steel.
Blinds are made of stamped galvanized steel to ensure maximum durability.
Each engine passed a full test.
The central unit and pulley are made of cast aluminum.
The impeller of the fan is statically and dynamically balanced.
Damper bearings do not require maintenance.
The patented centrifugal system ensures full opening of the shutters.
The blinds are opened due to the rotating masses located on the centrifugal system.

EM50n is ideal for rooms where high air permeability is required. The unique design, the impeller is self-cleaning and allows you to achieve maximum efficiency. The fan housing is square and the diffuser is made of Munters PROTECT anti-corrosion material. The impeller has six blades statically and dynamically balanced to ensure low noise and low vibration. The working wheel is also covered with a protective layer of Munters Protect, which gives maximum protection of the surface against corrosion.

The impeller is mounted on a large V-belt pulley, which includes a double bearing protected from water. The belt drive provides a low screw speed, and this ensures high efficiency, low energy consumption and low noise. The fan louvres are also covered with a Munters Protect protective layer. The shutters are tightly closed when the fan is not turned off, and this prevents air leakage through the fan. The patented centrifugal system allows you to keep all the shutters open and guarantees maximum productivity.

Fan diameter
impeller Productivity
at 0 Pa, m3/hour Productivity
at 25 Pa, m3/hour
Energy efficiency index
capacity m3/W/h at 0Pa

Munters EM50n 1270mm 42125 38048 28.0
