Maneuvering winches LM-71 and LM-140, Kharkiv region.

Winches maneuvering LM-71 and LM-140
intended for work related to the movement of goods along a horizontal track. It can be used to pull railway wagons with a carrying capacity of 63-125 tons at loading points.(//tractor-service.com)
The design of the winch allows unwinding the traction rope and moving it to the loading point at any speed. Maneuvering electric winches LM71 and LM140 are also manufactured with a brake in the "RV" version.

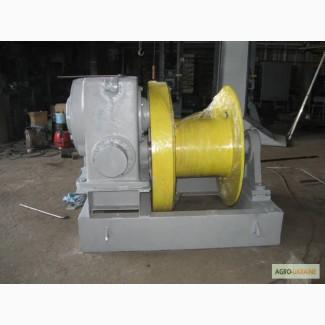

The winch consists of a frame on which a worm gearbox with an electric motor and a working drum resting on the gearbox housing and support are mounted. The mechanism for turning on and off the drum from the drive is built into the gearbox. The drum is rotated by an electric motor through the motor pair of the reducer, the gear shaft of which engages with the gear crown of the drum. In winches with a free-running drum, when the engine reverses, the drum is disconnected from the drive due to the activation of the cam mechanism. Therefore, the winch allows you to unwind the traction rope and move it to the loading point at any speed. The winches are adapted to remote and local control. The scope of delivery includes: winch, spare parts, tools, accessories and technical documentation. Winches of the LM-71 and LM-140 type are highly reliable and fail-safe in operation.
