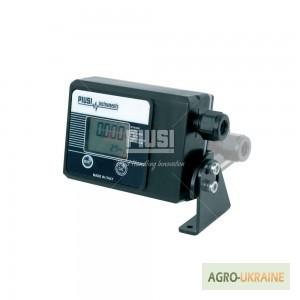

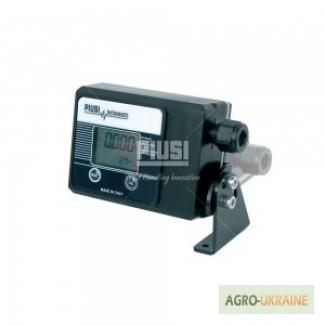

Information board for pulse counters, Киев

Remote display for remote connection (using a cable, the length of which does not exceed 15 m) to a pulse meter. The displayed quantity and the total quantity that cannot be reset are displayed on the wide screen. Equipped with application software for calibrating liter counters. It can be used as a simple display or as a source of pulses. It is indispensable if the receiving device recognizes only a number of discrete pulses. Simplicity of connection with control systems of models equipped with a pulse sensor expands the possibility of using pulse counters of liters connected to a remote display. Characteristics: Display of the total/partial amount on one display on 5 digits (h=11.5 mm) with floating point (from 0.001 to 99999) and the total amount, without the possibility of reset, on 8 digits (h = 5 mm, from 1 to 99999999). Powered by batteries or an external source. The possibility of setting the number of pulses per liter: 1, 2, 10, 20, 50, 100. It is possible to reset the total amount. The possibility of setting other units of measurement. Low battery warning. Flow rate indication.
