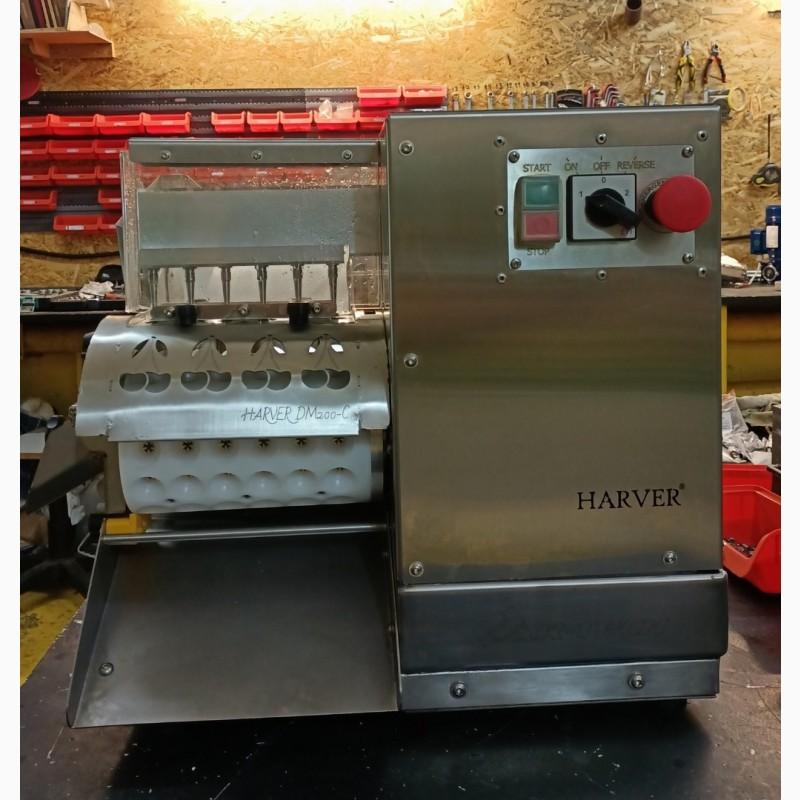

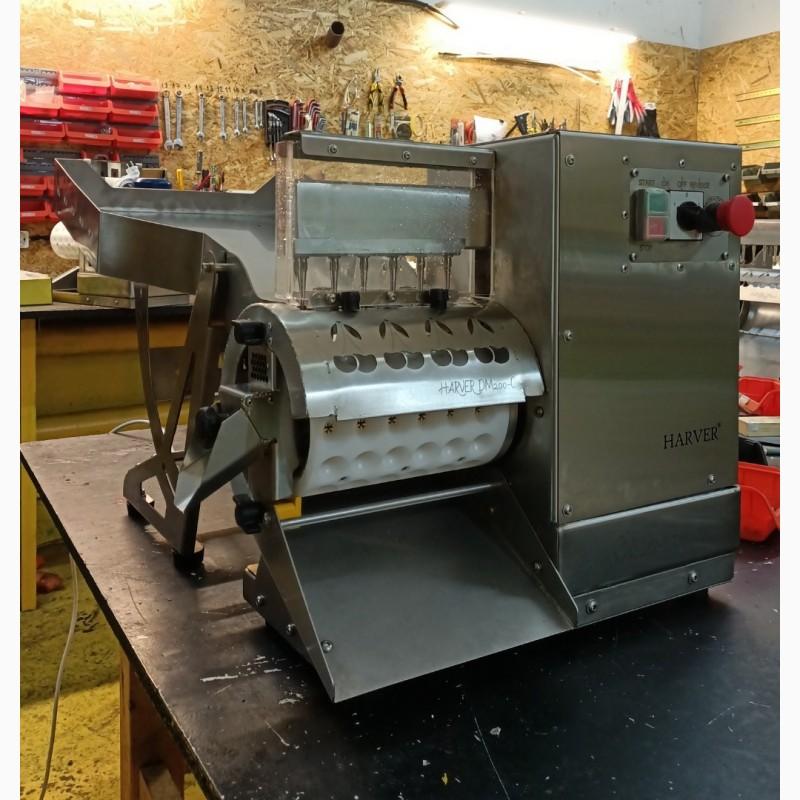

Cherry pitting machine, cherries 100 kg/hour Harver DM-200-C, Transcarpathian region.

The company AR-Tech brings to your attention our new development - a modified pitting machine for cherries Harver DM200-C.

The machine is designed for pitting fresh cherries,cherries. The maximum productivity is 80-100 kg/hour. The productivity of this machine depends on the size of the fruit. All parts in contact withfruits are made of food grade plastic and food grade stainless steel. The device is collapsible, all parts are easy to clean.

It is possible to operate the machine with cherries after freezing. The temperature of cherries should be: - 6°C to - 8°C.

Features:
- The machine works both with small-sized cherries and with large cherry fruits.
- The diameter of the fruit is 18 to 25 mm (28 is optional).
- High productivity: 420 pitted cherries per minute, 6 cherries simultaneously.
- Substantial economy of time and operational expenses.
- Feeding of new fruits into the cells occurs automatically.
- Ease of cleaning and maintenance.
- The corresponding parts are easily removed and washed.
- Minimum payback periods due to high productivity and low cost compared to other similar machines.
- Warranty 12 months.

HARVER DM200-C is suitable for use in bakeries and confectionery shops, small fruit processing factories. The machine is not a household appliance and requires qualified service personnel.(//tractor-service.com)

Principle of operation:

Cherries are loaded into the receiving containerемкость and picked up by cells in the working drum, which rotates 12 steps per full revolution. Cherries that have fallen into the corresponding cells are delivered to the processing area, where sharp plungers of a special shape, penetrating through the center of the fruit, remove the stone, directing it into the hole with a rubber cuff. The bones fall into a bone receiver with an auger, which removes them from the working area. The plungers return to their initial position, the drum rotates to the next steps, and the knocked-out cherries fall to the other side of the machine, falling into the storage container installed by the operator.

Technical data:
- Productivity: 100 kg/hour
- Power supply: 230 V/50 Hz
- Weight: 36 kg
- Dimensions: 535/590/510 mm
- Installed power: 0.18 kW

There are also machines with higher productivity.

You are guaranteed to receive a profitable offer upon request to our e-mail address or by phone.
Proposals are provided upon request.
The price on the site may differ from the actual price.
We look forward to hearing from you.
Sincerely, AR-Tech company.
