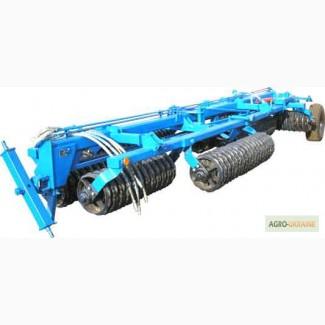

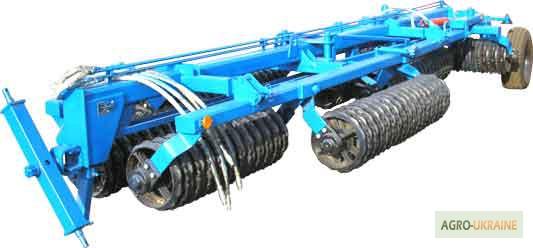

KZK type toothed-ring rollers - 9.2 / 10 / 12.5, Dnepropetrovsk region.

Designed for pre-sowing and post-sowing rolling soil, crushing of the surface soil crust and partial leveling of the plowed field.The skating rink works at a humidity of 12-25%, the hardness of the soil in the treated layer is from 0.25 to 0.6 MPa. The frame is made of a square fully stretched tube.

Distinguishing features:

- due to its own transportwheels allows you to quickly move from field to field and over considerable distances;

- reliable bearing units.

Mark

KZK-9,2

KZK-10

KZK-12.5

It is aggregated with traction class tractors

3

3

3

Type

semi-trailer

Width of capture, m

9

10

12.5

Productivity, ha/hour

5.4-9

6-10

7.5-12.5

Working speed, km/h

6 - 10

Transport speed, km/h

20

The outer diameter of the ring, mm: 188

клинчатого

350

460

460

serrated

360

470(//tractor-service.com)

470

water-filled

Dimensions in working condition, m :

length

3.58

7.00

8,175

width

9,285

10.30

12.88

height

0.97

1.00

1.07

Overall dimensions in transport condition, m :

length

6.48

6.90

8,10

width

2.32

2.32

2.31

height

1.57

1.40

1.40

Average service life, years, not less

7

Total mass, kg

3710

4910

6330
