Selsyn BS-1404, BD-1404, Selsyn - receiver BS1404, Selsyn - sensor BD1404, Kharkiv region.

Selsyn BS-1404:
Mode of operation - indicator;
Purpose of Selsin BS-1404 - receiver;
Supply voltage - 110V±5.5V; 130
Частота питающей сети - 50Гц±1, 5Гц;
Power consumption, no more than 16.5 W;
Maximum synchronization voltage BS-1404 - 51V±3V;
Current consumption, no more than 0.44A;
The error of tracking selcins of receivers:
- 1 accuracy class no more - from 0º to ±0.75º;
- 2nd accuracy class no more - over ±0.75º to ±1.5º;
The range of working temperatures is from -60ºС to +85ºС;
The upper value of relative air humidity at 40ºС is 98%;
The weight of the device Selsyn BS-1404, no more than 1.45 kg; 140
Габаритные размеры:
- длина - 119мм;
- diameter - 67mm;(//tractor-service.com)

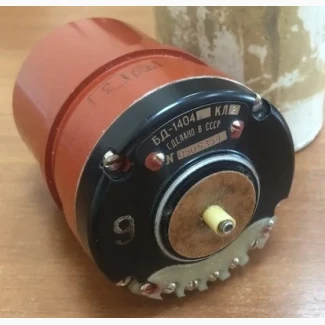

Selsyn BD-1404:
Operation mode - transformer and indicator;
Purpose of selsin BD-1404 - sensor;
Power supply voltage - 110V±5.5V;
The frequency of the supply network is 50Hz±1.5Hz; 150
Потребляемая мощь, не более - 16, 5Вт;
The maximum synchronization voltage of BD-1404 is 51V±3V;
Current consumption, no more than 0.44A;
Asymmetry of zero points of selsin sensors:
- 2 accuracy class no more - over ±0.25º to ±0.5º;
The range of working temperatures is from -60ºС to +85ºС;
The upper value of relative air humidity at 40ºС is 98%; 157
Масса прибора сельсин БД-1404, не более - 1, 25кг;
Габаритные размеры:
- длина - 119мм;
- diameter - 67mm;
